Features
Specifications

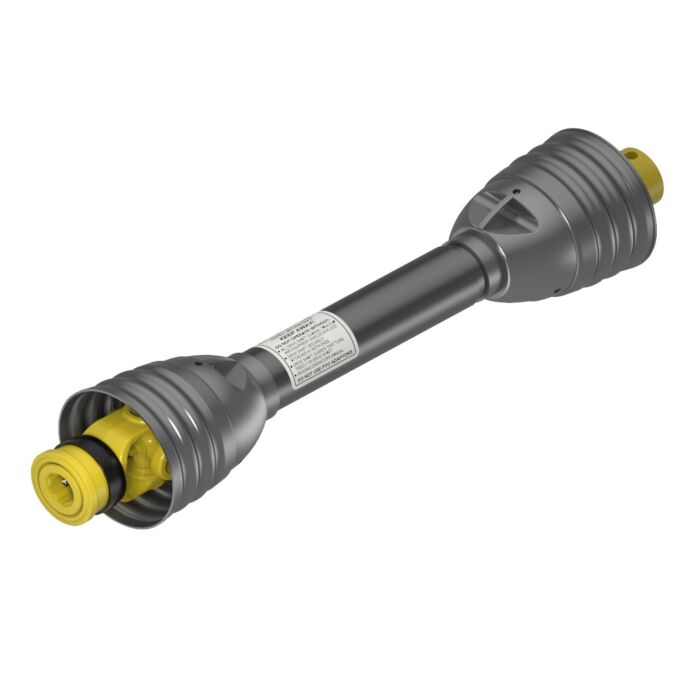

Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles available.
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
- Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
- Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
- Cross & Bearing Kits: Standard kits require regular maintenance.
Brand | Weasler |
---|---|
UPC | 728357118178 |
Store Location (Lititz, PA) | Aisle 07, Section W1 |
Package Length (in) | 6.00" |
Package Width (in) | 40.50" |
Package Height (in) | 6.00" |
Manufacturer Part Number | 14006442ST |
Length | 41.81 inch |
Height | 6 inch |
Width | 6 inch |
Weight | 25 lb |
Series | AB4 |
Outside Diameter | 6" |
Bore 1 | 1.375" |
Bore 1 Description | 1 3/8-6 SPLINE |
Connection 1 Description | SPRING-LOK |
Bore 2 | 1.375" |
Bore 2 Description | ROUND |
Connection 2 Description | PIN |
Compressed Length | 33.86" |
Extended Length | 53.88" |
Compressed Oal | 41.81" |
Extended Oal | 63.27" |
Torque | 25600 in-lb |
Pin Hole Diameter | 0.51" |
Pin Hole Location | 0.54 |
Bearing Diameter | 1.063" |
Bearing Span | 2.933" |
Application | ROTARY CUTTER |
RPM | 540 rpm |
Horsepower at 540 RPM | 36 hp |
Horsepower at 1000 RPM | 56 hp |
