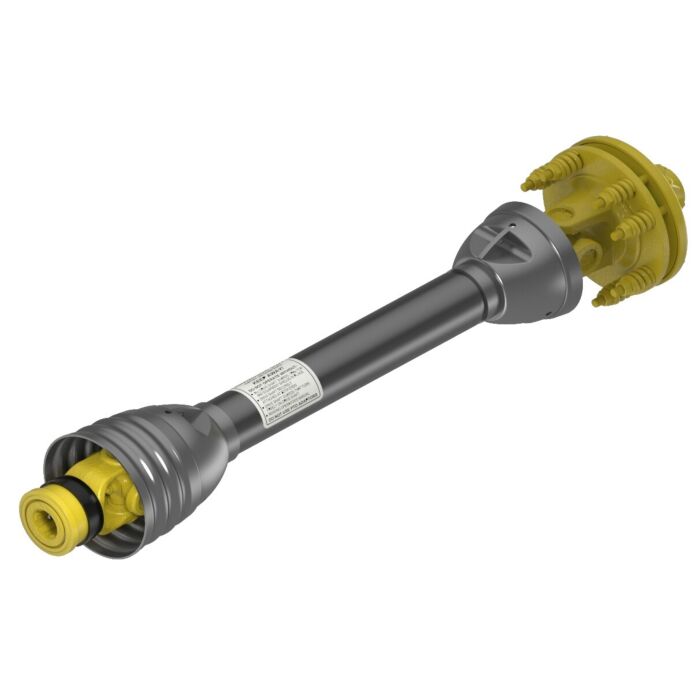

AB4 Series Profile PTO Drive Shaft With A 1 3/8-6 Spline Spring-lok Tractor Connection And 8000 Inch-pound Friction Clutch Yoke With 1 3/8-6 Spline Clamp Implement Connection
SKU: 14106436ST | Location: Aisle 07, Section W1
$301.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles available.
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
- Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
- Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
- Cross & Bearing Kits: Standard kits require regular maintenance.
Brand | Weasler |
---|---|
Store Location (Lititz, PA) | Aisle 07, Section W1 |
Package Length (in) | 7.00" |
Package Width (in) | 35.00" |
Package Height (in) | 7.00" |
Manufacturer Part Number | 14106436ST |
Length | 35.93 inch |
Height | 7.1 inch |
Width | 7.1 inch |
Weight | 35.92 lb |
Series | AB4 |
Outside Diameter | 7.1" |
Bore 1 | 1.375" |
Bore 1 Description | 1 3/8-6 SPLINE |
Connection 1 Description | SPRING-LOK |
Bore 2 | 1.375" |
Bore 2 Description | 1 3/8-6 SPLINE |
Connection 2 Description | CLAMP |
Compressed Length | 25.98" |
Extended Length | 38.86" |
Compressed Oal | 35.93" |
Extended Oal | 48.81" |
Torque | 8000 in-lb |
Bearing Diameter | 1.063" |
Bearing Span | 2.933" |
Application | ROTARY CUTTER/TILLER |
RPM | 540 rpm |
Horsepower at 540 RPM | 36 hp |
Horsepower at 1000 RPM | 56 hp |
