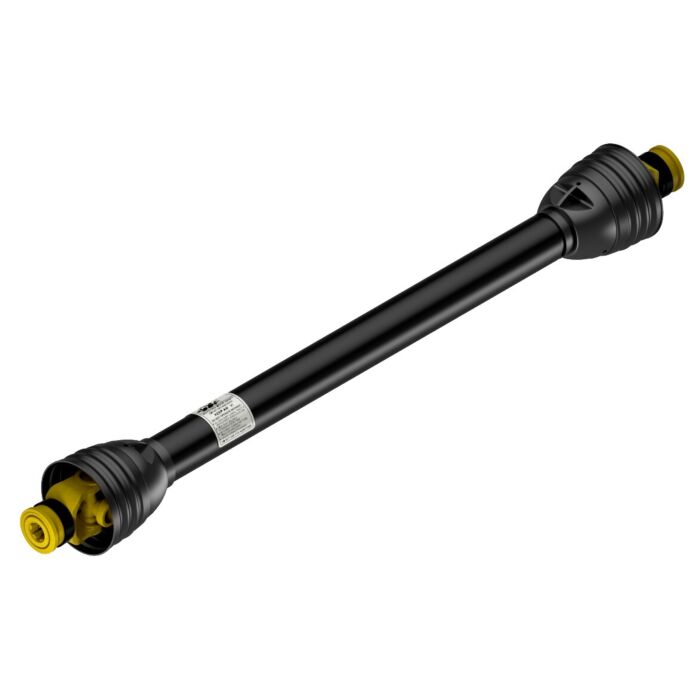

Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles available.
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
- Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
- Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
- Cross & Bearing Kits: Standard kits require regular maintenance.
Brand | Weasler |
---|---|
Package Length (in) | 57.00" |
Package Width (in) | 7.50" |
Package Height (in) | 7.50" |
Manufacturer Part Number | 14006657ST |
Length | 56.94 inch |
Height | 7.28 inch |
Width | 7.28 inch |
Weight | 46 lb |
Series | AB6 |
Outside Diameter | 7.28" |
Bore 1 | 1.375" |
Bore 1 Description | 1 3/8-6 SPLINE |
Connection 1 Description | SPRING-LOK |
Bore 2 | 1.375" |
Bore 2 Description | 1 3/8-6 SPLINE |
Connection 2 Description | SPRING-LOK |
Compressed Length | 47.64" |
Extended Length | 73.9" |
Compressed Oal | 56.94" |
Extended Oal | 83.2" |
Bearing Diameter | 1.189" |
Bearing Span | 3.618" |
Application | ALL PURPOSE |
RPM | 540 rpm |
Horsepower at 540 RPM | 64 hp |
Horsepower at 1000 RPM | 99 hp |
