Conventional V-belts for ARPM / RMA IP-20, available in wrapped type or raw-edge cogged type, are the most typical form of power transmission belts. They are known for their reliability and are used in many fields of mechanical power transmission. Therefore, they are economic, available in the market and easily replaced.

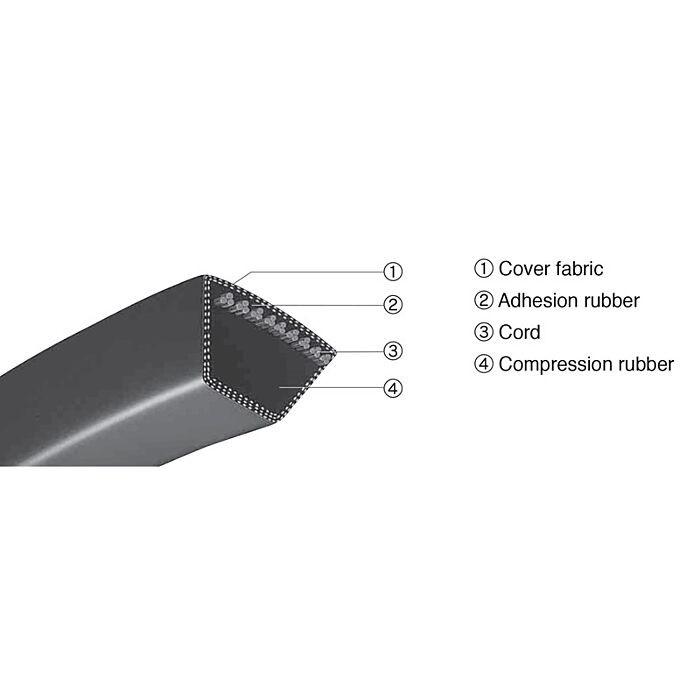

- Cover cloth: It is highly elastic, can easily bend and stretch while the belt is rotating and has strong resistance to wear
- Core line - belt is the central part of strong power transmission. In order to fully satisfy this role, we use a core wire with high tensile strength, low elongation and high bending fatigue resistance
- V-core rubber: Uses a highly flexible compounded rubber that is less deformed under high load and has excellent durability
Brand | Timken Belts |
---|---|
Store Location (Lititz, PA) | Aisle 07, Section M9 |
Package Length (in) | 22.20" |
Package Width (in) | 8.00" |
Package Height (in) | 1.20" |
Type | Standard |
Section Size | A |
Outside Length | 152 in |
Top Width | 1/2 in |
Thickness | 0.3125 in |
Cogged/Smooth | Smooth |
Rib Width | 1/2 in |
Angle | 40 deg |
Number of Ribs | 1 |
Construction | Wrapped |
Reinforced Material | Polyester |
Resists | Oil & Heat Resistant, Static Dissipating |
Material | Styrene Butadiene Rubber |
Color | Black |
Standards | ARPM |
