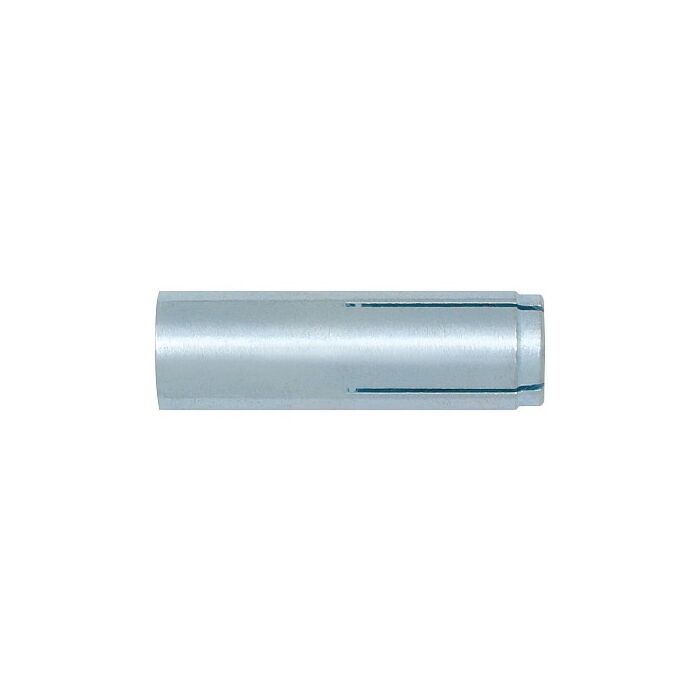

1/4 in 3/8 in 1 in Drop-In Anchor
SKU: 06304PWR
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$0.21
- Buy 100 for $0.19 each and save 10%
Features
Specifications
The steel drop-in is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.
- Internally threaded anchor for easy bolt removability and service work
- Smooth wall drop-in can be installed flush mounted or below the base material surface (optionally available with a knurled body)
- Flanged (lipped) version installs flush for easy inspection and standard embedment
- Coil thread version accepts coil rod and typically used for concrete formwork applications
- Tested in accordance with ASTM E488 in uncracked concrete
- Underwriters Laboratory (UL Listed) – File No. EX1289 and VFXT7.EX1289, see listing for sizes
- FM Approvals (Factory Mutual) – see approval for sizes
- Federal GSA Specification – meets descriptive
| Brand | Dewalt Anchors |
|---|---|
| UPC | 075352063041 |
| Store Location (Lititz, PA) | Aisle 12, Section C4 |
| Package Length (in) | 1.00" |
| Package Width (in) | 0.25" |
| Package Height (in) | 0.25" |
| Manufacturer Part Number | 06304-PWR |
| Rod/Anchor Size | 1/4 in |
| Outside Diameter | 3/8 in |
| Overall Length | 1 in |
| Material | Carbon Steel |
| Finish | Smooth |
| Standards | UL® Canadian, FM Approved |
| Application | Suspending Conduit, Cable Trays and Strut, Pipe Supports, Fire Sprinkler Supports, Concrete Formwork, Suspended Lighting |
