Features
Specifications

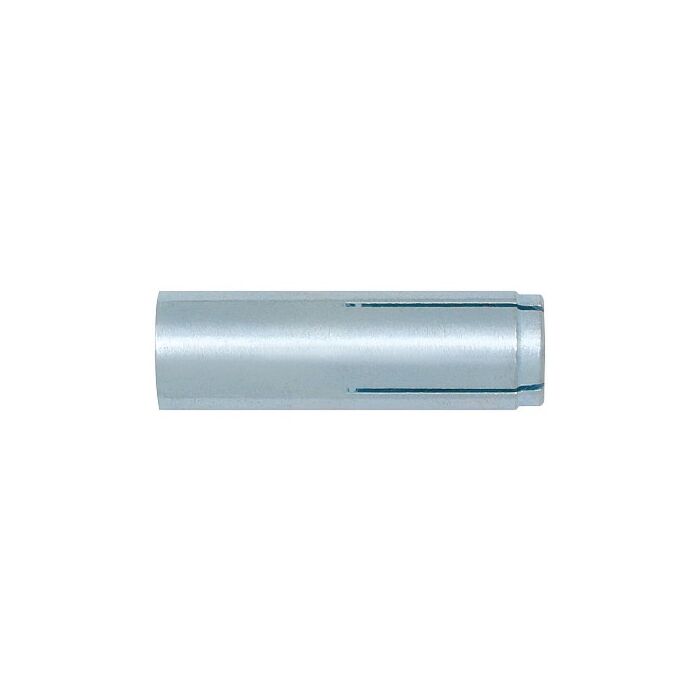

The steel drop-in is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.
- Internally threaded anchor for easy bolt removability and service work
- Smooth wall drop-in can be installed flush mounted or below the base material surface (optionally available with a knurled body)
- Flanged (lipped) version installs flush for easy inspection and standard embedment
- Coil thread version accepts coil rod and typically used for concrete formwork applications
- Tested in accordance with ASTM E488 in uncracked concrete
- Underwriters Laboratory (UL Listed) – File No. EX1289 and VFXT7.EX1289, see listing for sizes
- FM Approvals (Factory Mutual) – see approval for sizes
- Federal GSA Specification – meets descriptive
Brand | Dewalt Anchors |
---|---|
UPC | 075352063065 |
Store Location (Lititz, PA) | Aisle 12, Section C4 |
Package Length (in) | 1.56" |
Package Width (in) | 0.37" |
Package Height (in) | 0.37" |
Manufacturer Part Number | 06306-PWR |
Rod/Anchor Size | 3/8 in |
Outside Diameter | 1/2 in |
Overall Length | 1-9/16 in |
Material | Carbon Steel |
Finish | Smooth |
Standards | UL® Canadian, FM Approved |
Application | Suspending Conduit, Cable Trays and Strut, Pipe Supports, Fire Sprinkler Supports, Concrete Formwork, Suspended Lighting |
