DYKEM

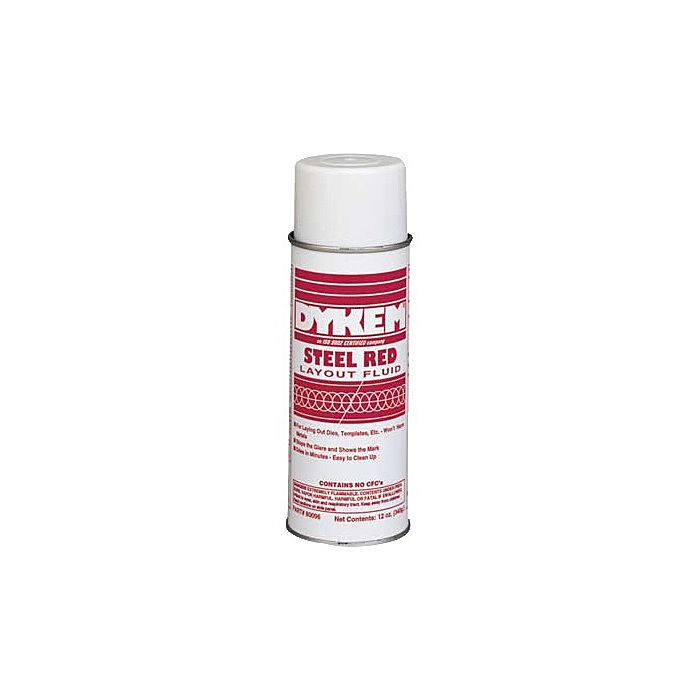

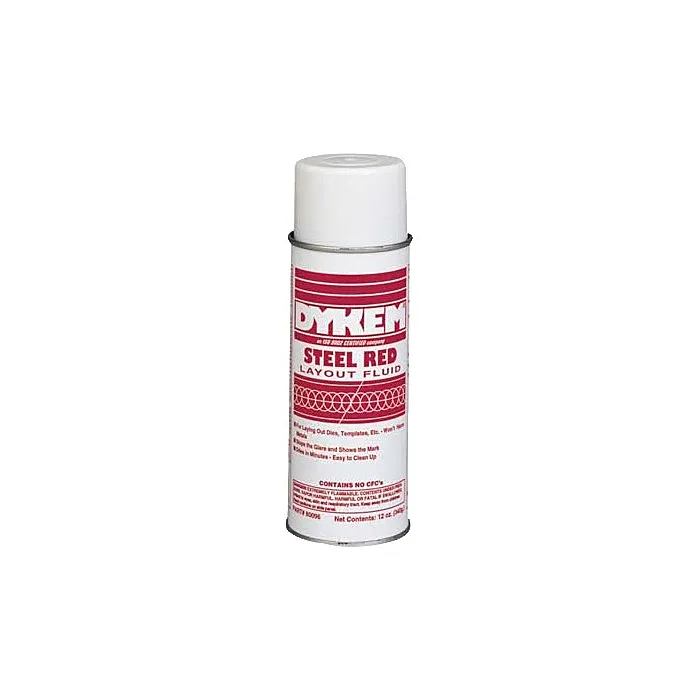

12 oz Aerosol Can Layout Fluid
SKU: 2C933
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$21.99
Features
Specifications
Machine shop operators depend on Dykem® Layout Fluids to scribe sharp, clear, precise lines. When applied, our layout fluids provide a uniform deep color that prevents glare and dries in minutes. All Dykem® Layout Fluids create an extremely thin film which adds practically no thickness to the work piece and remains flexible without cracking and chipping.
- Steel Red provides a uniform deep color that prevents glare and eye strain
- Allows for sharp, clear and precise scribes
- Provides a thin film without cracking/chipping and adds practically no thickness to work surface
- Meets A-A 59168 dated 21st May 2014 paragraph 3.1.1 thru 3.2.4.4 with the exception of 3.3(chemical resistance to chlorinated solvents)
- Dries within minutes
- Reveals defects and pinholes in a variety of surfaces
- Great for inspection of gear tooth contact patterns
- Available in multiple package sizes
- Does not contain any reportable amounts of Xylene
| Brand | DYKEM |
|---|---|
| UPC | 753769800960 |
| Store Location (Lititz, PA) | Aisle 06, Section N1 |
| Package Length (in) | 8.00" |
| Package Width (in) | 2.80" |
| Package Height (in) | 2.20" |
| Net Content | 12 oz |
| Container Type | Aerosol Can |
| Color | Red |
| Odor/Scent | Sweet Solvent |
| Composition | 30-40% Ethyl Alcohol, 20-30% Butyl Acetate, 20-30% Petroleum gases, Liquefied, 68476-86-8 Sweetened, 5-10% Butanol Normal, 1-5% Cellulose Nitrate, 1-5% Diacetone Alcohol, 1-3% Propyl Acetate, 1-3% Solvent Red 160 |
| Flash Point | 53 deg F |
| VOC Content | 93.89% |
