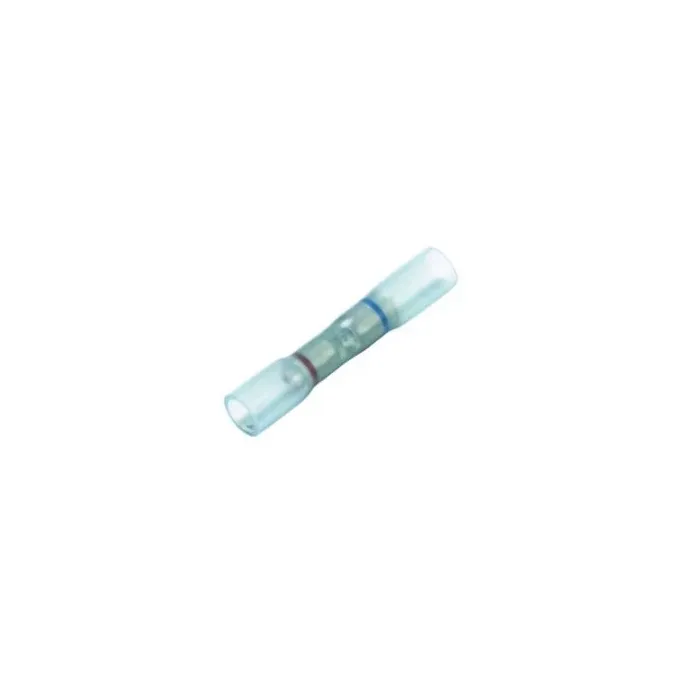

16-14/12-10 AWG 600 V/1000 V Step-Down Butt Connector
SKU: DC922225
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.99
Features
Specifications
Heat shrink step down butt connectors are terminals that are used to mate, connect or terminate a single wire. The step down design of each connector allows the ability to connect two different gauge sized wires, while the shrink tube insulation completely seals the terminal connection. Step down butt splices can be used in vehicles, buildings and applications that utilize wire to transfer electrical current.
- Heat shrink is adhesive-lined and color-coded to industry standard wire range
- The translucent, gauge printed heat shrink allows for visual inspection
- Have a greater pull strength when compared to vinyl or nylon
- Heat shrink terminals protect against corrosion and are waterproof
- Rated to 600 volts maximum, building wire; 1000 volts maximum, 105 deg C
| Store Location (Lititz, PA) | Aisle 14, Section N3 |
|---|---|
| Package Length (in) | 0.25" |
| Package Width (in) | 2.00" |
| Package Height (in) | 3.75" |
| Wire Size | 16-14/12-10 AWG |
| Voltage Rating | 600 V/1000 V |
