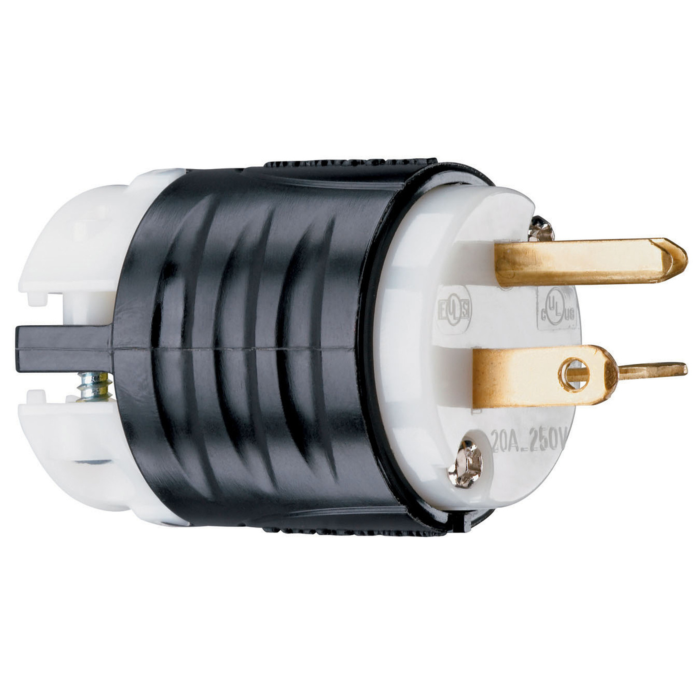

Straight Blade PLUG 3W 20A 250V BandW PS5466X
SKU: 5466X
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$15.49
Features
Specifications
Straight Blade PLUG 3W 20A 250V BandW PS5466X
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007237078 |
| Store Location (Lititz, PA) | Aisle 08, Section C3 |
| Package Length (in) | 1.75" |
| Package Width (in) | 1.75" |
| Package Height (in) | 1.75" |
| Manufacturer Part Number | PS5466X |
| Length | 1.752 in |
| Color | Black |
| Width | 1.358 in |
| Product Line | Pass & Seymour |
| Country of Origin | Mexico |
| Type | Plug |
| Flanged | No |
| Amperage | 20.0 A |
| Standard | FEDSPEC |
| Voltage | 250.0 V |
| Features | Chemical Resistant |
| NEMA Rating | 6-20P |
| Number of Wires | 3.0 |
| Warranty Type | 1-Year |
| Indoor/Outdoor | Indoor |
| Connection | Wire Grounding |
| Number of Poles | Double Pole |
| Application Sector | Industrial |
| NEMA Configuration Code | 6-20P |
| Terminal Accommodation | #4 AWG |
| Connector Style | Straight Blade |
| Special Features | Chemical & Impact resistant, 2pc cord grip accepts wide cord |
