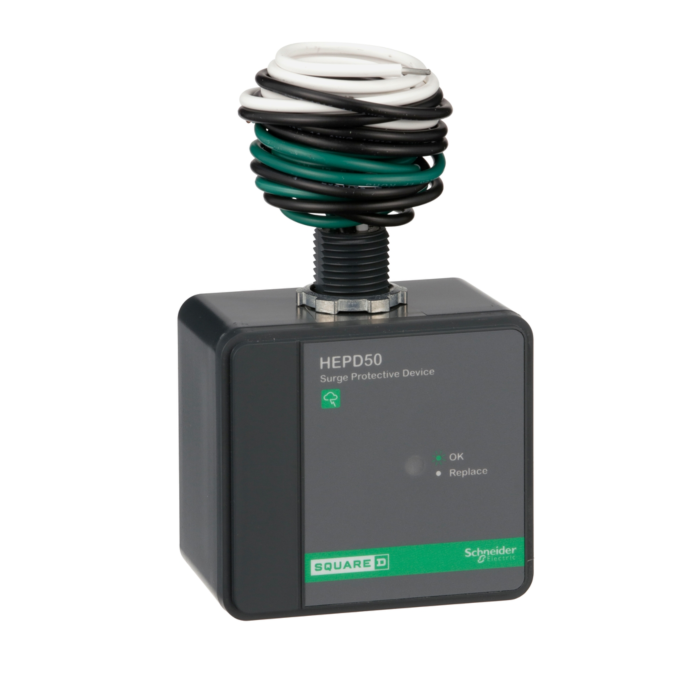

Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1

SKU: HEPD50 | Location: Aisle 08, Section D1
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 3 In stock

Features
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 50 kA of surge protection per phase. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.
Specifications
Brand Schneider Electric
UPC 785901006626
Store Location (Lititz, PA) Aisle 08, Section D1
Package Length (in) 7.00"
Package Width (in) 5.20"
Package Height (in) 2.80"
Manufacturer Part Number HEPD50
Height 3.23 in
Surge Current 50 kA per phase
Nominal Discharge Current 10 kA
Phase 1 phase
Product Destination load center
Input Voltage 600 V L-N || 600 V L - G || 1000 V L - L || 900 V N - G
Local Signalling 1 LED green normal operation
Short-Circuit Protection 25 kA
[Uc] Maximum Continuous Operating Voltage 150 V
Width 3.72 in
Wiring Configuration 3-wire (isolated ground)
Depth 2.10 in
[Ue] Rated Operational Voltage 120/240 V AC
Rohs Exemption Information Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant with Exemptions
Ambient Air Temperature For Operation -35-65 °C
Standards UL 1449 || cUL || UL 1449:ed. 4: type II
Nema Degree Of Protection NEMA 4X
Range Of Product Square D
Product Or Component Type surge protection device
Device Short Name HEPD
