Switch Boxes
SKU: 553972
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$7.99
Features
Specifications
Downloads

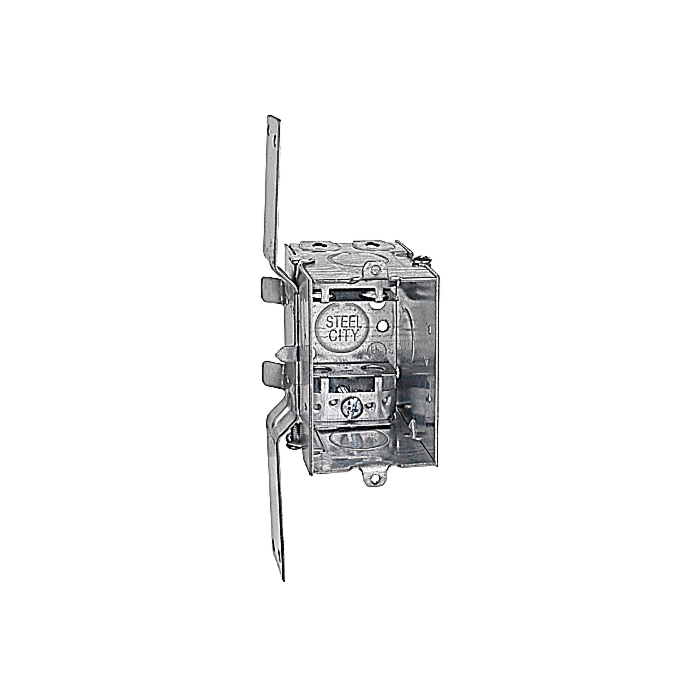

Gangable Switch Box, 12.5 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-1/2 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Armored Cable Clamps (C-3) and CV Bracket Recessed 7/8 Inches, For use with Armored/Metal Clad Cable
- Gangable for multiple switches or device installations
| Brand | Southwire |
|---|---|
| UPC | 050169005248 |
| Store Location (Lititz, PA) | Aisle 09, Section D6 |
| Package Length (in) | 2.80" |
| Package Width (in) | 1.60" |
| Package Height (in) | 2.40" |
| ETIM | EC000080 Surface mounted housing for flush mounted switching device |
| Assembly arrangement | Surface mounted housing |
| Mounting direction | Vertical |
| Material | Steel |
| Colour | Silver |
| Transparent | N |
| Width of device | 50.8mm |
| UNSPSC | 39121306 Switch box |
| IGCC | 4430 Switch box |
| Brand Name | Steel City |
| Type | Switch Boxes |
| Application | For use with armored/metal clad cable |
| Standard | UL E2969 |
| Size | 3 Inches Height x 2 Inches Width x 2-1/2 inches depth |
| Color | Silver |
| Cubic Capacity | 12.5 Cubic Inches |
| Knockouts | Yes |
| Number Of Outlet | 1 |
| Outer Quantity | 25 |
| Outer Dimensions (inches) | 19.5x8x8.6 |
| Weight Uom | 72 lbs. per 100 |
