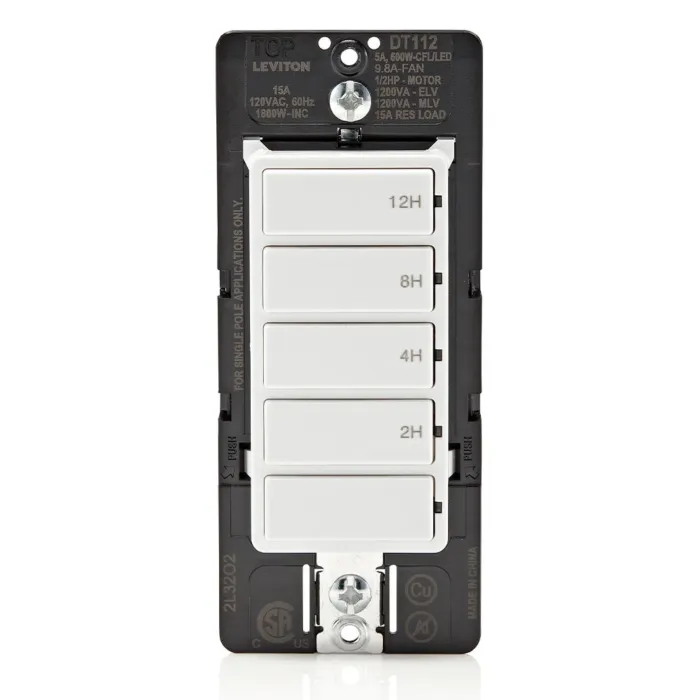

Decora In-Wall 12-Hour Countdown Timer Switch, 15A, ½ HP/9.8A Fan/Motor, Single Pole (White)

Name: Leviton Decora In-Wall 12-Hour Countdown Timer Switch, 15A, ½ HP/9.8A Fan/Motor, Single Pole (White)
Brand: Leviton
SKU: DT1121LW
Price: 29.99 USD
Availability: InStock

SKU: DT1121LW

Lititz, PA

M-F 6:30am-8:30pm; Sat 6:30am-4:00pm

All Locations

Lititz Your Store 3 in stock

Features

The Decora 12-Hour Countdown Timer Switch has 5 buttons with 2-hour, 4-hour, 8-hour and 12-hour preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White

Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
Four preset time option buttons 2-4-8-12 hour with separate off button. Press time option to turn on and will automatically turn off when time expires
600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, ½ HP/9.8 Amp Fan/Motor, 15A Resistive
Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
Zero Cross turn-on technology to extend the life of the switch
Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button
Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
Ideal to use for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
Do not use to control lights if there is no other light source in the space
CONVENIENT – replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
EASY DIY INSTALL – slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
ENERGY SAVING – ensure lights and fans are not left on unintentionally
PRACTICAL – for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown

Specifications

Brand	Leviton
UPC	078477264317
Store Location (Lititz, PA)	Aisle 05, Section D4
Package Length (in)	2.00"
Package Width (in)	3.00"
Package Height (in)	4.20"
Manufacturer Part Number	002-DT112-1LW
Amperage	15 A
Compatible Bulb Type	LED \| CFL \| Incandescent \| Halogen \| Magnetic Low Voltage \| Electronic Low Voltage \| Fluorescent \| Fan \| Motor
Device Type	Timer Switch
Function	Single-Pole (SP)
Grade	Residential
Grounding	Yes
Horsepower Rating	1/2 HP
Mounting Type	In-Wall
Neutral Required	Optional
Optional Faceplates	DTKIT
Power Consumption	<1 Watt
Standards and Certifications	CSA \| FCC \| IC
Style	Push Button
Termination	Leads
Timer Options	12-Hour (2H, 4H, 8H, 12H)
Timer Type	Countdown
Voltage	120 VAC
Wallplate	Not Included
Warranty	5-Year
Wattage Rating	600W \| 1800W \| 1200VA
Country of Origin	China
RoHS Compliant	False
Faceplate Color	White, Other colors available separate (Ivory, Light Almond, Gray, Black, Brown)
