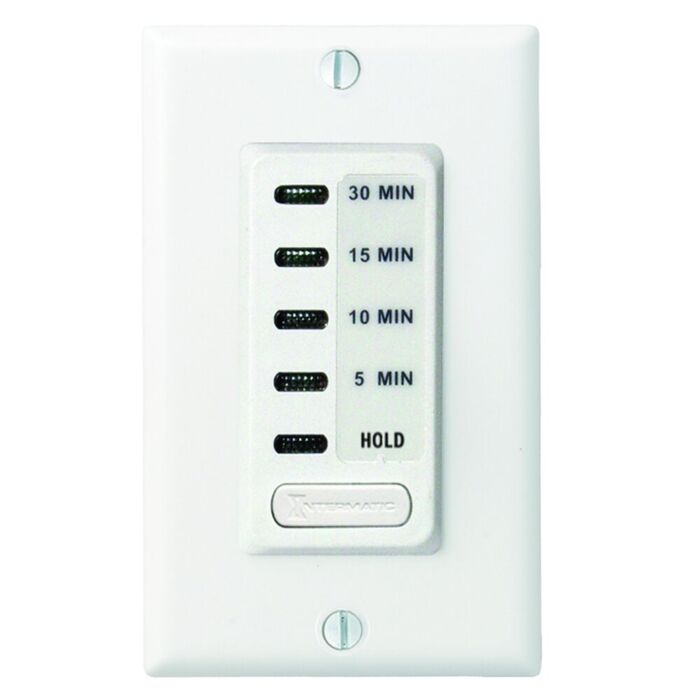

120 VAC 15 A 60 Hz Countdown Timer Switch
SKU: EC200WK
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$36.99
Features
Specifications
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern.
- No programming required
- Provides silent operation in time ranges from five minutes to 30 minutes
- Single-button time selection, with a HOLD mode, for continuous ON operation
- Replaces any standard wall switch
- Incandescent/fluorescent/CFL/LED compatible
- Requires neutral connection
| Brand | Intermatic |
|---|---|
| UPC | 078275143548 |
| Store Location (Lititz, PA) | Aisle 05, Section D4 |
| Package Length (in) | 4.20" |
| Package Width (in) | 2.00" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | EC200WK |
| Voltage Rating | 120 VAC |
| Current Rating | 15 A |
| Frequency Rating | 60 Hz |
| Power Rating | 1000 W |
| HP Rating | 1/4 hp |
| Contact Configuration | Single Gang |
| Timing Range | 5-30 min |
| Mounting Type | In-Wall |
| Material | Plastic |
| Color | White |
| Height | 104.8 mm |
| Width | 42.93 mm |
| Depth | 36.5 mm |
| Application | CFL, Fluorescent, Incandescent, LED |
