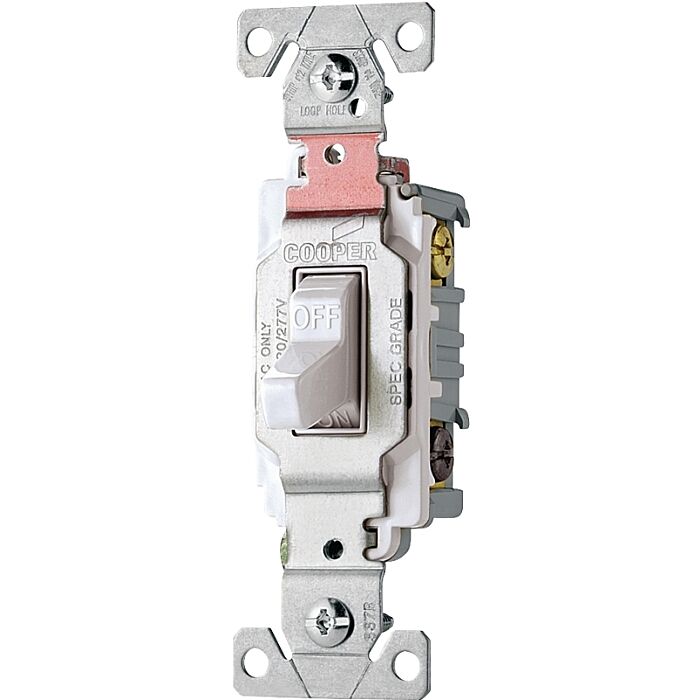

CS320W Toggle Switch, 20 A, 120/277 V, 3 -Position, Lead Wire Terminal, Nylon Housing Material
SKU: 6354
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.29
Features
Specifications
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.
- Patent pending spring cup toggle design for robust actuation
| Brand | Eaton |
|---|---|
| UPC | 032664488634 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 3.40" |
| Package Width (in) | 1.20" |
| Package Height (in) | 0.80" |
| Actuator Type | Cam |
| Color | White |
| Contact Material | Silver |
| Current Rating | 20 A |
| Dielectric Strength | 1500 V |
| Housing Material | Nylon |
| Mounting Type | Wall |
| Number Of Positions | 3 |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120/277 V |
| Wattage Rating | 1 to 2 hp |
