World Casters & Equipment Manufacturing

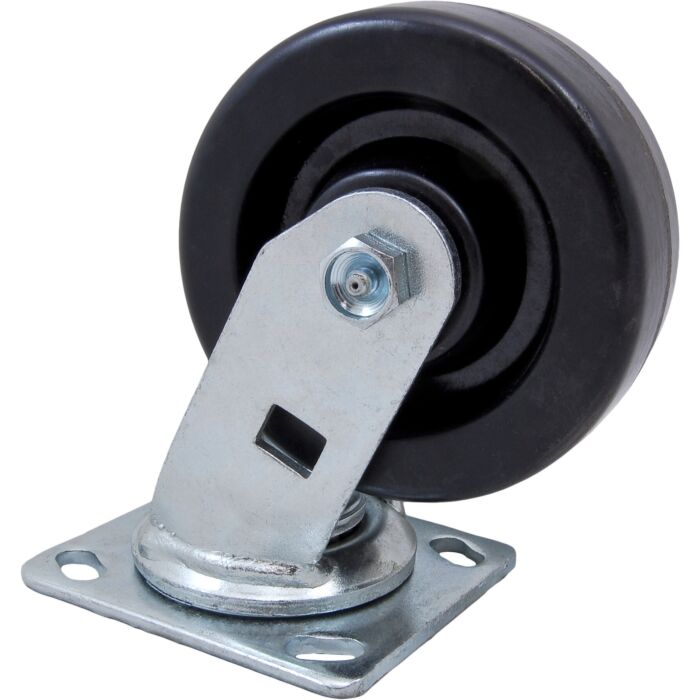

Phenolic Swivel Caster - 5 in.
SKU: TP501
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.99
Features
Specifications
The Swivel Caster is a heavy-duty unit featuring a single 5" diameter, 2" wide phenolic wheel. Designed for durability, it has a 900 lb load capacity and uses a top plate fastener (4" x 4-1/2") for secure mounting. The roller swivel mechanism with a top plate includes case-hardened double ball raceways for extra capacity and long life. Both the top plate and legs are constructed from 1/4" cold-forged steel with a corrosion-resistant zinc-plated finish. Key structural details include a 5/8" nut and bolt kingpin, 2-1/2" fork spacing, a 4-1/4" swivel radius, and a 6-1/2" overall height.
- 900 lb weight capacity
| Brand | World Casters & Equipment Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 32, Section W4 |
| Package Length (in) | 3.60" |
| Package Width (in) | 1.20" |
| Package Height (in) | 6.20" |
| Manufacturer Part Number | 6650-01-PHN |
| Number of wheels | 1 |
| Fastener Type | Top Plate |
| Capacity | 900 lb |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Wheel Material | Phenolic |
| Swivel Radius | 4-1/4" |
| Overall Height | 6-1/2" |
| Fastener Size | 4" x 4-1/2" |
| Bearing | Roller |
| Application | For miscellaneous carts, platform trucks, wire shelving units, heavy appliances, general duty material handling, vending machines, warehouse & factory applications, heavy foodservice & institutional equipment, textile applications, tool boxes, etc |
