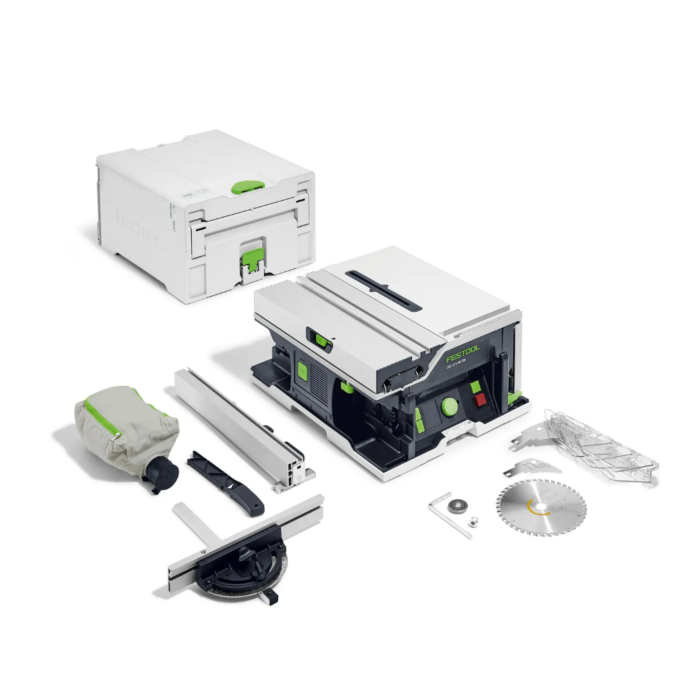

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11" (280 mm), cross-cut widths of up to 17-3/4" (450 mm) and bevel cuts of -2° to 47°. The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter (1/256"). The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with a corded tablesaw. Together with the UG-CSC-SYS underframe, you have the perfect worktable with built-in support for ripping and cross cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50: The ultimate in portable precision.
- Parallel cuts up to 11"; cross cut width of up to 17-3/4", & bevel cuts from -2° to 47°
- Ideal for back-beveling filler strips
- Compact and mobile
- Height and bevel angle are electrically adjusted via the digital display for extremem precision-- accurate to within a tenth of a millimeter
- Repeatable cuts are easy
- Four saw blade positions can be saved and selected via the digital display
- Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results
- The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table
- Absolutely smooth-sliding action with an all bearing-mounted slide
- Brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast & powerful sawing
- Combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long runtime
- EC-TEC motor is long-lasting, durable, and maintenance-free
- Saw blades & specific speeds can be input that align with nearly every material
- Chip collection bag for practically dust-free work
- Cleaner working with a system
- Fits together with the entire Festool Systainer system and Systainer Systems van racking equipment
- The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
- Three-year warranty for battery packs and chargers too
| Brand | Festool |
|---|---|
| Date Added | Dec 21, 2025 |
| Package Length (in) | 25.20" |
| Package Width (in) | 20.87" |
| Package Height (in) | 16.93" |
| Manufacturer Part Number | 576821 |
| Country of Origin | Germany |
| Weight | 33.08 lbs (15.00 kg) |
| Dimensions | (L x W x H) 20-5/32" x 15-19/32" x 11-21/32" (512 mm x 396.00 mm x 296.00 mm mm) |
| Drive Type | {Akku} |
| Battery Voltage | 2 x 18 V |
| Idle Engine Speed | 4500 – 6800 RPM |
| Inclination Angle | -10 - +47 ° |
| Mitre Angle | 0 - 70° |
| Dust Extraction Connection Diameter | 1-1/16" (27 mm) |
| Dimensions (L x W x H) | 20-5/32" x 15-19/32" x 11-21/32" (512 x 396 x 296 mm) |
| Cutting Depth 45° | 0 - 1-11/32" (0 - 34 mm) |
| Cutting Height 0° | 0 - 1-7/8" (0 - 48 mm) |
| Saw Blade Location Hole | 3/4" (20 mm) |
| Parallel Cut Width | 11" (280 mm) |
| Tabletop Height | 11" (228 mm) |
| Cutting Height -10° | 13-16" - 1-1/4" (21 - 32 mm) |
