DAYTON

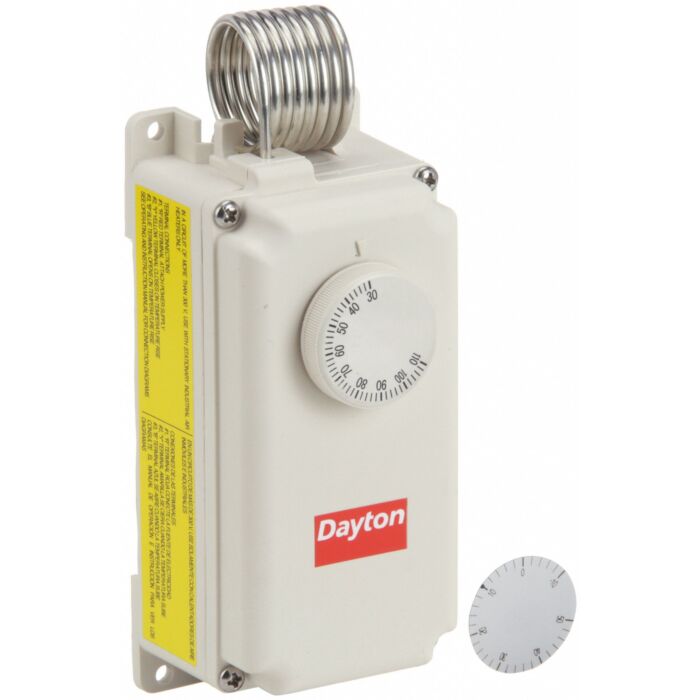

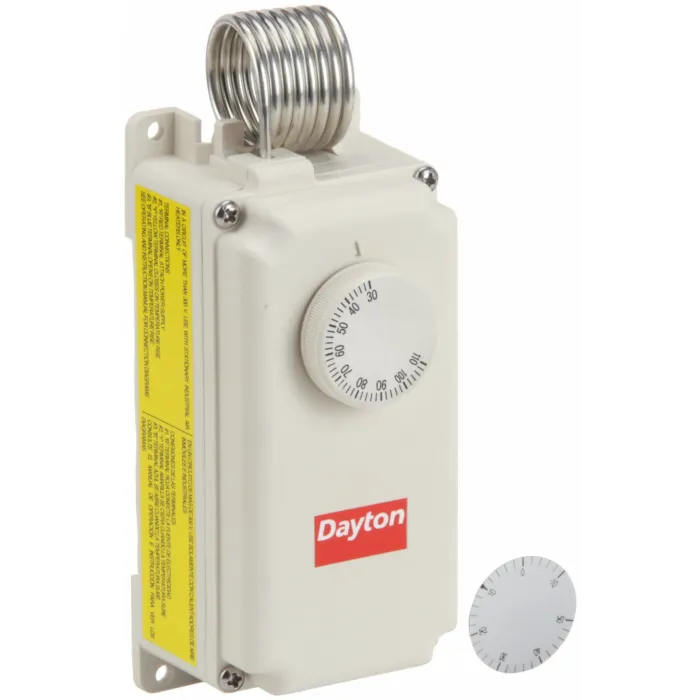

120-277 V Line Volt Analog Mechanical Thermostat
SKU: 6EDY5
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$64.99
Features
Specifications
These weatherproof temperature controls have raintight enclosures that are rated NEMA 4X, so they're suitable for areas that are exposed to water spray, high humidity, airborne contaminants and corrosive conditions. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These temperature controls have an air-coil sensor that monitors and regulates the ambient air temperature in heating and ventilation applications.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section D5 |
| Package Length (in) | 2.00" |
| Package Width (in) | 2.50" |
| Package Height (in) | 6.75" |
| Type | Analog |
| Voltage Rating | 120-277 V |
| Current Rating | 22 A |
| Frequency Rating | 50-60 Hz |
| Programmability | No |
| Changeover | Automatic |
| Number of Stages | 2 |
| Switch Position | Open/Close |
| Switch Type | SPDT |
| Contact Rating | Resistive at 120-277 V 22 A |
| Number of Switches | 1 |
| Temperature Rating | 30-110 deg F |
| Mounting Type | Screw |
| Material | Plastic |
| Color | White |
| Dimensions | 2-1/2" W x 6-3/4" H x 2" D |
