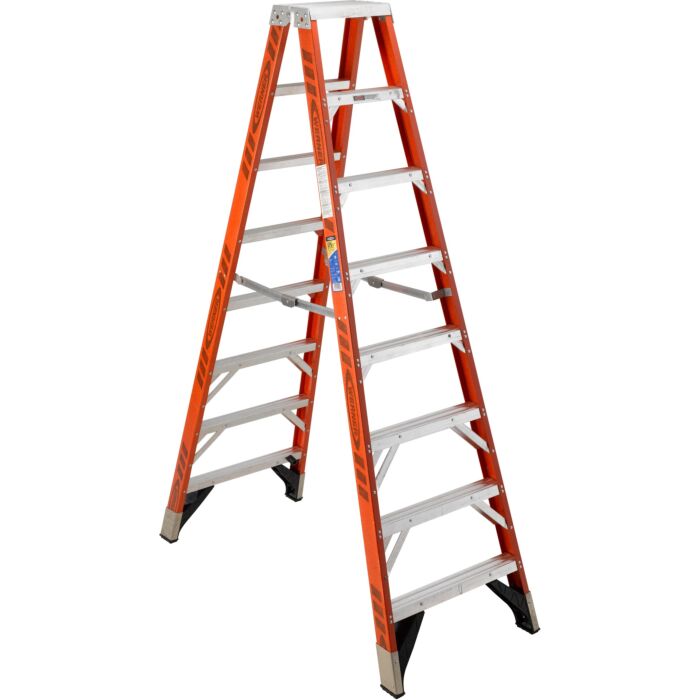

The T7408 Fiberglass 8 ft Twin Step Ladder features a duty rating of 375 pounds per side of the ladder. Designed for one or two-person jobs, the T7400 ladders have heavy gauge aluminum tops and feature heavy duty internal spreaders to resist damage around the worksite or in transit. The GLAS*MARK® Violater stripes on the rails make the ladder more visible and the EDGE® bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.
- Back-up aluminum plates reinforce all top connectors
- Heavy gauge aluminum extruded top with thick side plates
- EDGE® bracing system helps to decrease damage to rail
- GLAS*MARK® Violator stripes on rails allow ladder to be more visible
- Rubber step bumpers to resist damage
- Maximum load per side, including person and materials, shall not exceed duty rating of ladder
- Aluminum external rail shield helps protect against abrasion damage
- Shoe pads riveted to the EDGE® structure
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
- Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
- Design for one or two-person jobs
- Extra heavy duty internal aluminum spreaders
- Every rivet backed up by metal, metal plates or washer to protect rails
- T7406
- T7414
- T7420
- T7416
- T7418
- T7410
- T7412
- T7405
- T7408
- T7404
- 21-22 Grating Shoes
Brand | Werner |
---|---|
UPC | 051751011579 |
Store Location (Lititz, PA) | Front Porch |
Manufacturer Part Number | T7408 |
Type | Type IAA Duty Rating |
Style | Twin |
Load Capacity | 375 lbs |
Size | 8 ft |
Reach Height | 12 ft |
Performance Rating | 5 star |
Approx. Cu. Ft. Per Unit | 10.5 |
Approx. Width | 28-1/2 in |
Approx. Shipping Wt. Lbs. | 40.5 |
Material | Fiberglass |
Spreader Material | Aluminum |
Certifications | ANSI A14.5 (2007); OSHA |
Edge Bracing | Heavy |
Approx. Spread | 64-1/8 in |
Max. Standing Height | 5 ft 9 in |
With Pail Shelf | No |
Front Flange Dimension | 1-3/16 in |
Rear Rails Dimension | 3-1/8 in |
Front Rails Dimension | 3-1/8 in |
Rear Flange Dimension | 1-3/16 in |
Steps Dimension | 3 in |
Top Dimension | 8-1/4 in x 14-1/2 in |
