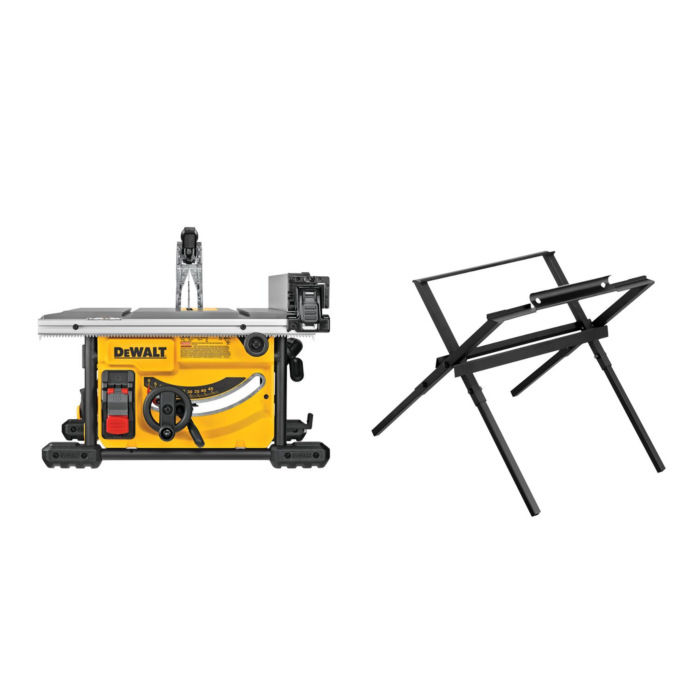

Maximized for accuracy and capacity this 8-1/4 in. Table Saw with Stand also includes on-board storage for blade gaurd assembly, non-through cut riving knife, anti-kickback pawls, blade change wrenches, miter gauge and push stick. The powerful 15 amp, 5800 RPM motor alows users to complete a mjority of applications. The rack & pinion fence allow for fast, easy adjustments and provides the capacity to rip 4x8 sheet goods.
- 24.5 in. of rip capacity for ripping 4x8 plywood or OSB sheets
- Blade Brake
- Compact size for easy transportation and storage
- Power-Loss reset prevents accidental re-starts following a power disruption when the tool is left in the on position
- Rack and pinion telescoping fence rails make fence adjustments fast, smooth and accurate
Brand | DEWALT |
---|---|
UPC | 885911737289 |
Store Location (Lititz, PA) | In Warehouse, see sales associate |
Package Length (in) | 26.75" |
Package Width (in) | 17.25" |
Package Height (in) | 17.25" |
Manufacturer Part Number | DWE7485WS |
Country of Origin | Taiwan |
Height | 27.750 in |
Length | 26.750 in |
Width | 17.250 in |
Weight | 75.930 lbs |
Power Source | Electric |
Cordless Vs. Corded | Corded |
Voltage | 120 V V |
Battery Included | No |
Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
Amperage | 15 |
Cord Length | 6 Ft |
Disclaimer | NULL |
Prop 65 Generic Warning | Yes |
Warranty | 3LW1YS90D |
Certifications Or Listings | UL Listed |
California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
Claims Needed | No |
File/Certification Number (Lowes Required) | TBD |
Adjustable Depth | Yes |
Arbor Size | 5/8 in |
Bench Or Stationary | Bench |
Bevel Capacity | 48 |
Blade Composition | Bi-metal |
Blade Diameter | 8 1/4 in In. |
Blade Location | Centered |
Cuts Into | Wood |
Depth Control | Yes |
Dust Blower | No |
Dust Port | Yes |
Fence Included | Yes |
Handle Type | Auxiliary |
Individual Vs. Set (Syndigo) | INDIVIDUAL |
Maximum Cut Depth @ 45 Deg. | 1.75 |
Maximum Cut Depth @ 90 Deg. | 2.5625 |
Maximum Speed | 5800 RPM Rpm |
Phase | Single-phase |
Portable | Yes |
Rip Capacity | 24.5 |
Rip Capacity Left | 24.5 In |
Rip Capacity Right | 24.5 In |
Spindle Lock | Yes |
Table Length | 22.75 In |
Table Material | Aluminum |
Table Tilt Left | 47 Deg |
Table Tilt Right | -2 Deg |
Table Width | 14.88 In |
