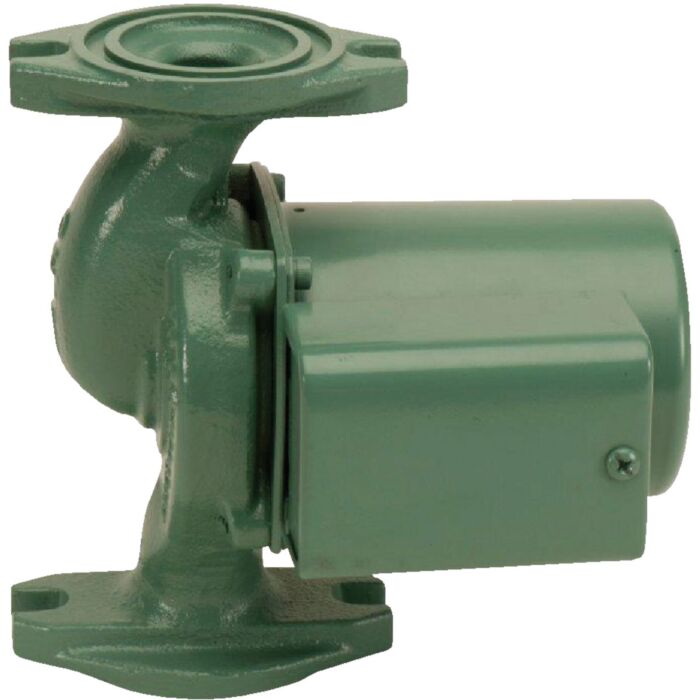

This is a cartridge-style, maintenance-free, wet-rotor, in-line, single-stage circulator pump designed for quiet operation. It's suitable for hydronic heating, radiant heating, Hydro-Air fan coils, indirect water heaters, chilled fresh water, and domestic water recirculation systems. Key features include universal flange-to-flange dimensions, no mechanical seal, self-lubrication, and direct drive with low power consumption. The replaceable cartridge contains all moving parts, allowing for easy servicing without needing to replace the entire unit.
- Maintenance free
- Self lubricating
- Low power construction
- Easy servicing
| Brand | TACO |
|---|---|
| UPC | 687752187311 |
| Store Location (Lititz, PA) | Aisle 04, Section D3 |
| Package Length (in) | 6.80" |
| Package Width (in) | 5.80" |
| Package Height (in) | 6.60" |
| Manufacturer Part Number | 007-F5 |
| Application | Zoning |
| Material | Cast Iron |
| Amperage | .71 |
| Voltage | 115 |
| Max Pressure | 125 psi |
| Type | Pump |
| Horse Power | 1/25 hp |
| Connection Size | 3/4"., 1", 1-1/4", 1-1/2" Flanged |
| Flow Range | 0-23 gpm |
| Max Flow | 23 gpm |
| Max Head | 10 ft |
| Head Range | 0-10 Ft. |
| Hertz | 60 |
| Phase | Single |
| Speed Rating | 3250 rpm |
| Temperature Range | 40°F - 240°F |
| Connection Type | Flanged x Flanged |
| Frequency | 60 Hz |
| RPM | 3250 rpm |
| Horsepower | 1/25 HP |
| Flow Rate | 0-23 GPM |
| Fluid Temperature | 40 F/240 F |
| Max Working Pressure | 125 psi |
