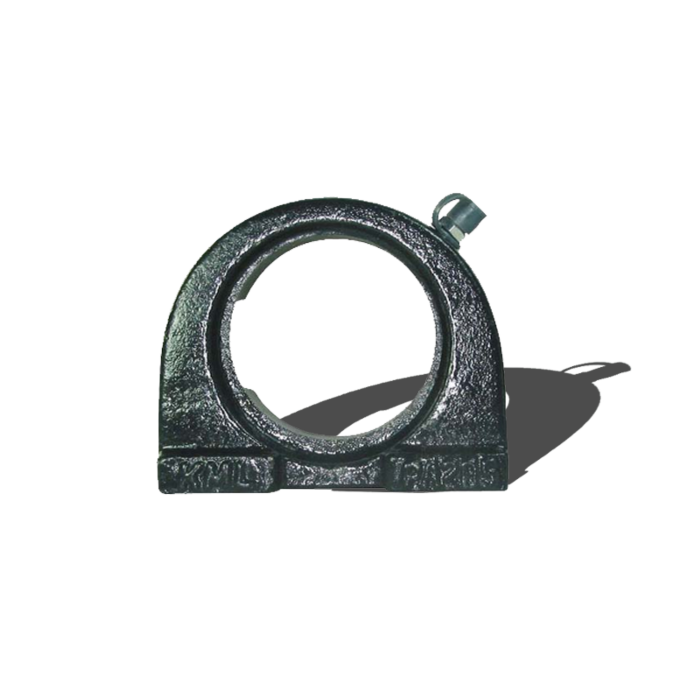

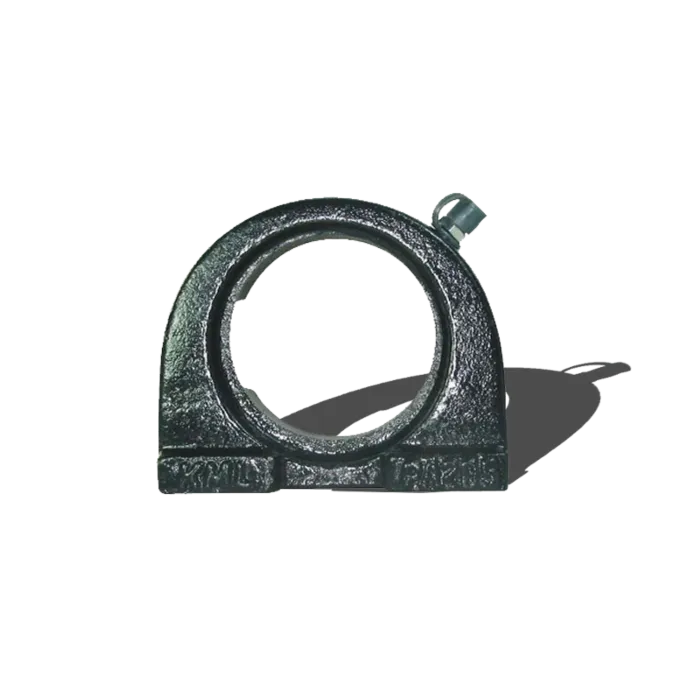

72 mm 110.3 mm Cast Iron Tap Base Pillow Block Housing
SKU: PA207KML
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$21.65
Features
Specifications
Pillow Block Housing, Tap Base, Series: PA, 72 mm Inside Dia, 2-Bolt Mount, 47.6 mm Base to Bore Centerline, 110.3 mm Overall Length, 95.3 mm Overall Height, 48 mm Overall Width, Ball Compatible Bearing, 80 mm Bolt Center-to-Center Length, Cast Iron, Uncoated
| Brand | KML |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section W2 |
| Package Length (in) | 4.40" |
| Package Width (in) | 2.80" |
| Package Height (in) | 4.80" |
| Manufacturer Part Number | PA207 |
| Type | Tap Base |
| Series | PA |
| Inside Diameter | 72 mm |
| Mounting Type | 2-Bolt |
| Base to Bore Centerline | 47.6 mm |
| Overall Length | 110.3 mm |
| Overall Height | 95.3 mm |
| Overall Width | 48 mm |
| Compatible Bearing Type | Ball |
| Bolt Center-to-Center Length | 80 mm |
| Material | Cast Iron |
| Finish | Uncoated |
