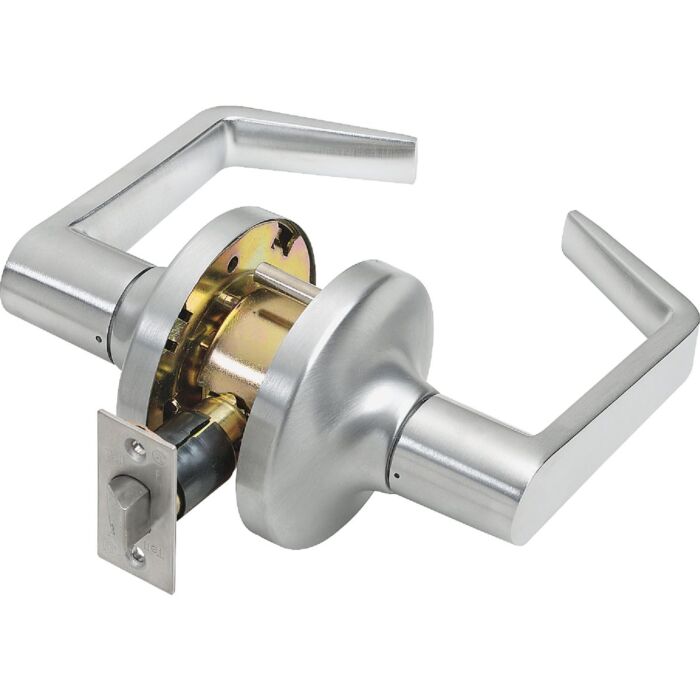

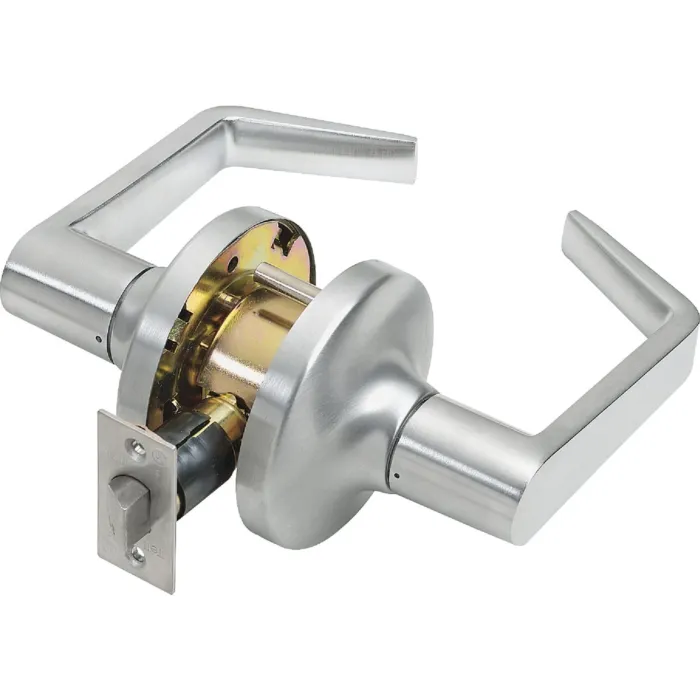

Commercial Satin Chrome Passage Door Lever
SKU: CL100013
$77.99
Features
Specifications
(LC2475). Heavy-duty commercial passage lever. Satin chrome (US26D) finish. Performance: Complies with ANSI A156.2, Series 4000, Grade 2 (400,000 cycles). UL listed for 3 hour fire door, ANSI A117.1 American Disabilities Act (ADA). Door range: 1-3/8" to 2". Backset: 2-3/4" standard. Strike: T strike (1-1/8" x 2-3/4") standard. Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latchbolt operated by lever from either side. For keyed alike, member must order directly from vendor.
| Brand | Tell |
|---|---|
| UPC | 737874400642 |
| Store Location (Lititz, PA) | Aisle 18, Section H5 |
| Package Length (in) | 7.80" |
| Package Width (in) | 6.60" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | CL100013 |
| Finish | Satin Chrome |
| Function | Passage |
| Grade | Grade 2 |
| Backset | 2-3/8 In. or 2-3/4 In. |
| Latch | Adjustable Latch |
| Strike | T-Strike |
