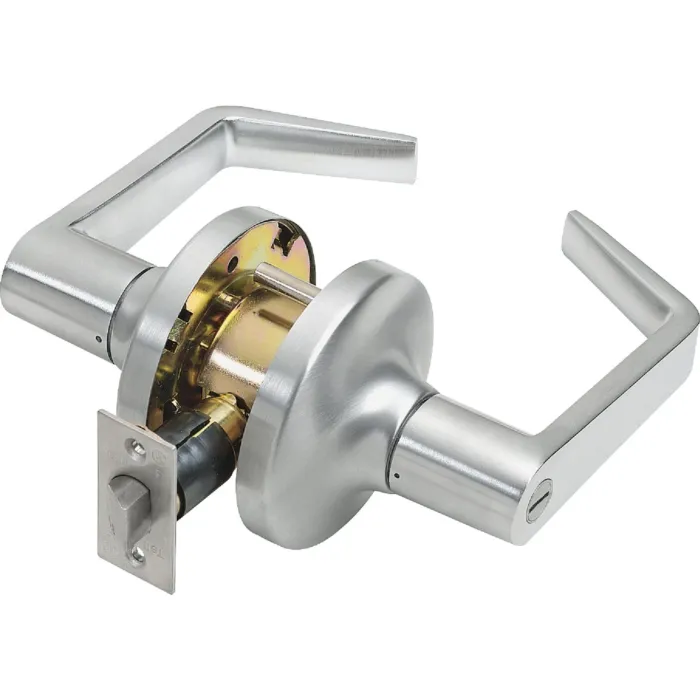

Satin Chrome Privacy Door Lever
SKU: CL100016
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$82.99
Features
Specifications
(LC2476). Heavy-duty commercial privacy lever. Satin chrome (US26D) finish. Performance: Complies with ANSI A1562.2, Series 4000, Grade 2 (400,000 cycles). UL listed for 3 hour fire door, ANSI A117.1 American Disabilities Act(ADA). Door range: 1-3/8" to 2". Backset: 2-3/4" standard. Strike: T strike (1-1/8" x 2-3/4") standard. Cylindrical, steel-coated with zinc dichromate (corrosion resistance). Latchbolt operated by lever from either side. Outside lever locked by push-button on inside. Unlocked by emergency release on outside, rotating inside lever, or closing door. For keyed alike, member must order directly from vendor.
| Brand | Tell |
|---|---|
| UPC | 737874400659 |
| Store Location (Lititz, PA) | Aisle 18, Section H5 |
| Package Length (in) | 8.80" |
| Package Width (in) | 8.40" |
| Package Height (in) | 3.20" |
| Manufacturer Part Number | CL100016 |
| Finish | Satin Chrome |
| Function | Privacy |
| Mounting | Non-Handed |
| Latch | Adjustable |
| Backset | 2-3/8 In. or 2-3/4 In. |
| Security Level | Grade 2 |
| Exterior Access | Emergency Tool |
| Interior Access | Push Button |
| Door Thickness | 1-3/8 In. or 1-3/4 In. |
| Strike Corner | T-Strike |
