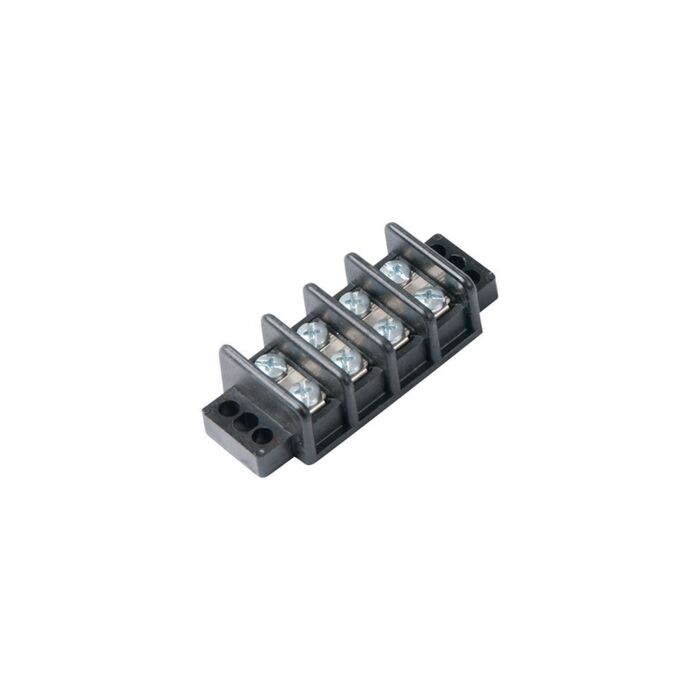

600 V 30 A Terminal Block

Screw terminal blocks provide a common area to neatly connect multiple wire connections. The blocks are an individual gang/non bussed screw terminal blocks that joins positive or negative connections for either AC or DC applications. Each barrier on the block is spaced 0.41 in to provide protection to the #8 screw mounting areas. The bars on the screw terminal block are thermoplastic and feature copper screw connection points. The screw terminal blocks selection from Del City features blocks ranging in length form 2 gang to 12 gang and can accept #10-22 AWG sized wires. Protect, connect and organize your wire connections with a high quality and reliable screw terminal block.

• Rating 30 Amps, 600V AC/DC
• Center spacing 0.563 in
• Distance between barriers 0.416 in
• Temperature rating(-40 to 125 deg C)
