Features
Specifications

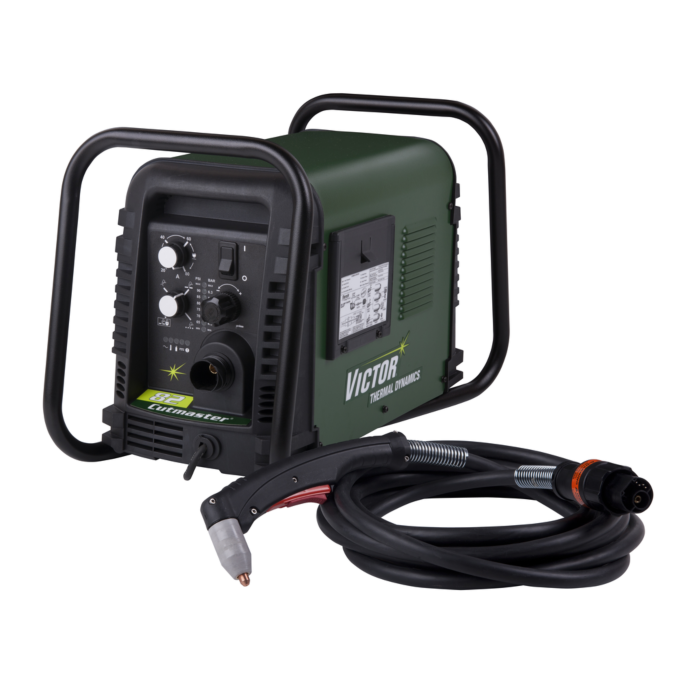

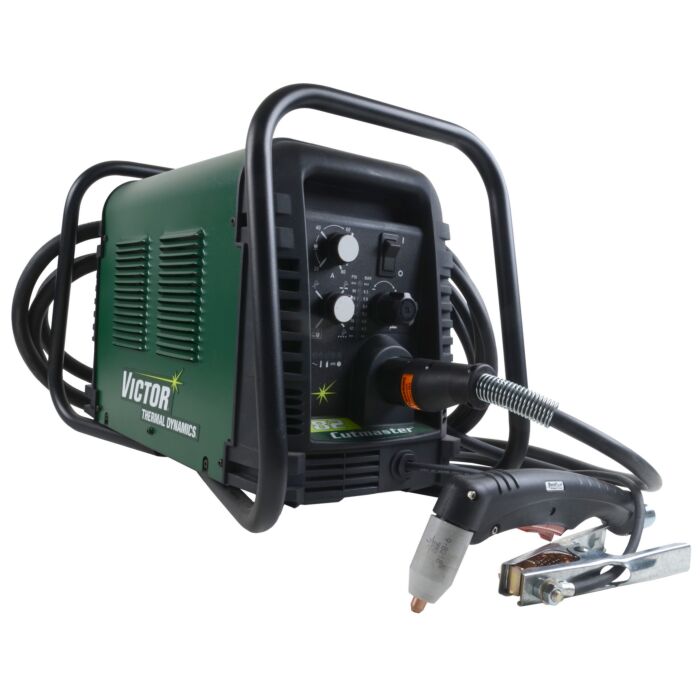

Thermal Dynamics ® Cutmaster™ 82 Air Plasma Cutter with a maximum cutting thickness of 1 1/2" has an input of 208 - 230 V, single phase, 50/60 Hz and has an output of 20 - 80 A. Cutter with a recommended cutting capacity of 3/4" has a pierce rating of 5/8" and is used for heavy fabrication, manufacturing and contractors. It has an amperage draw of 72 A at 230 V and includes a power supply, 20' lead, SL60 torch with a 75 deg head, 10' input power cable without plug, work cable and clamp, spare parts kit and an operating manual. Cutter measuring 15" X 12" X 24" has an air pressure of 70 psi with a 6. 7 cfm flow and offers a duty cycle of 40% at 80 A, 60% at 65 A and 100% at 55A. The Yes guard bar secures the power supply for durability and facilitates easy transportation. The front panel of the cutter features all the controls and the color coded LEDs denote pressure status and setup errors. Lightweight cutter features a 60 A drag tip and the trigger latch reduces the hand fatigue during long cuts. Cutter offers multiple voltage design that facilitates operation from 208 - 480 V and the storage compartment is used to store spare parts and consumables. The 1 Torch having ATC disconnect permits you to add lead extensions or it can be converted into a machine torch. The autopilot restart quickly initiates the pilot arc and cuts expanded metals and the cutter offers hand torch switch or hand pendant control.
- Mech pack 7.6 m (25 ft) 7 - 7725
- Mech Pack 15.2 m (50 ft) 7 - 7750
- VCM 201 Cutting machine 0252 - 0125
- 1.8 m (6 ft )Track 0212 - 0005
- 2.7 m (9 ft) Track 0212 - 0019
- 3.7 m (12 ft) Track 0212 - 0018
- Pinion Assembly 7 - 2827
- Automation Interface Kit for CutMaster 52, 58, 82, 102 and 152 9 - 8311
- SL 180 Deg 7.6 m (25 ft) 7 - 4001
- SL 180 Deg 10.7 m (35 ft) 7 - 4002
- SL 180 Deg 15.2 m (50 ft) 7 - 4003
- SL 180 Deg 22.9 m (75 ft) 7 - 4004
- SL 180 Deg 30.5 m (100 ft) 7 - 4005
- Front Panel LEDs indicate status conditions for maximum efficiency.
- Storage compartment for convenient access to spare parts and consumables.
- Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch.
- True Guard roll bar provides easy transportation and protection for unmatched durability.
- Multi-voltage allows operation from 208 to 480 Volts in a single power supply.
- Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals.
- Lighter weight design for maximum portability
- Contractors
- Manufacturing
- Heavy Fabrication
Brand | Victor Technology |
---|---|
UPC | 699488001229 |
Store Location (Lititz, PA) | Aisle 28, Section T8 |
Manufacturer Part Number | 1-1130-1 |
Trade Name | Cutmaster® | Cutmaster® 82 |
Input Voltage | 208 - 230 V |
Phase | Single Phase |
Recommended Cutting Capacity | 3/4" |
Hz | 50/60Hz |
Maximum Cutting Capacity | 1 1/2" |
Maximum Severance | 1 1/2" |
Carcinogen | Lead |
Reproductive | Dual Short Form |
Maximum Pierce | 5/8" |
Output DC Amps (Max) | 80 A |
Output Power | 9kW |
Duty Cycle | 100% @ 55 A | 40% @ 80 A | 60% @ 65 A |
Physical Size (Inches) | 15" X 12" X 24" |
Gas | Air |
Includes | Power supply | (1) 75 Degree head SL60 hand torch | 20' Lead | 10' Input power cable 1 phase without plug | Work cable and clamp | Spare parts kit | Operating manual |
