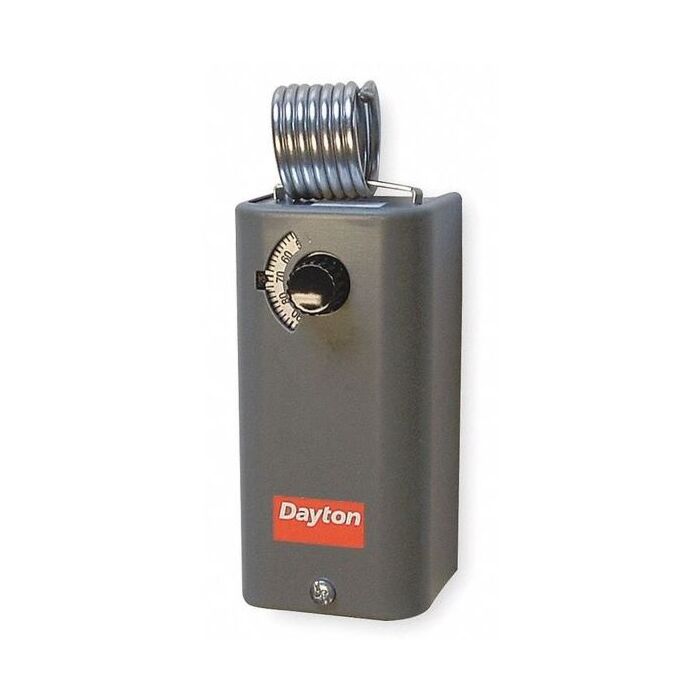

These temperature controls are suitable for indoor settings such as livestock barns, garages, or workshops. Their enclosures meet NEMA 1 for use indoors. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These controls have an air-coil or bimetal sensor that monitors and regulates the ambient air temperature. The sensing element is not affected by changes in barometric pressure or cross-ambient conditions.
- CUL Listed & UL Listed
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section D5 |
| Package Length (in) | 6.20" |
| Package Width (in) | 2.40" |
| Package Height (in) | 2.60" |
| Type | Line Volt |
| Voltage Rating | 24-600 VAC |
| Programmability | No |
| Number of Stages | 1 |
| Switch Position | Open/Close on Rise |
| Switch Type | SPDT |
| Contact Rating | 22 A at 120 V |
| Sensing Element | Hydraulic Cap |
| Display Type | Analog |
| Number of Switches | 1 |
| Temperature Rating | 30-110 deg F |
| Mounting Type | Vertical Box |
| Material | Steel |
| Finish | Polished |
| Color | Gray |
