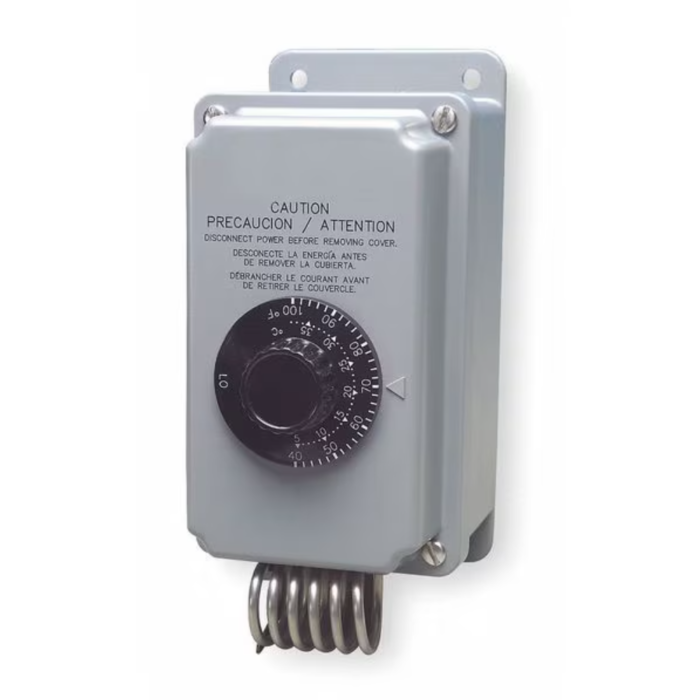

120-277 V 25 A SPDT Mechanical Thermostats
SKU: 4MY92
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$154.99
Features
Specifications
The TH109-009 Thermostat has a range of 40 to 100 deg F and features two SPDT switches staged 3 deg F apart. It delivers reliable temperature control for industrial, commercial and agricultural applications. The TH109 has a molded plastic enclosure and stainless steel hardware. These UL Listed thermostats meet the requirements for NEMA 4X equipment and are suitable for use under the National Electric Code (N.E.C.) Article 547-4, when used with appropriate watertight connections.
| Store Location (Lititz, PA) | Aisle 04, Section D5 |
|---|---|
| Package Length (in) | 7.40" |
| Package Width (in) | 3.60" |
| Package Height (in) | 5.40" |
| Voltage Rating | 120-277 V |
| Current Rating | 25 A |
| Number of Stages | 4 |
| Switch Type | SPDT |
| Contact Rating | 120 V, 240 V, 277 V |
| Sensing Element | Hydraulic Air Coil |
| Number of Switches | 2 |
| Differential Temperature | 3 deg F |
| Temperature Settings | Automatic |
| Temperature Rating | 4-100 deg F |
| Accuracy | +/-3 deg F |
| Color | Gray |
| Dimensions | 3-1/2 in W x 5 in x 7-5/16 in |
| Application | Warehouses, Animal Confinement, Greenhouses, Industrial and Commercial |
