Features
Specifications

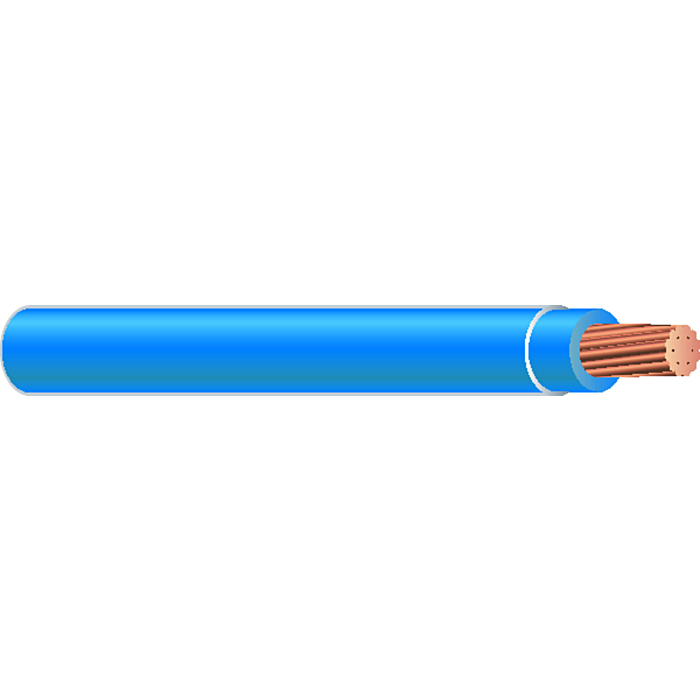

Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
- THWN-2- Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
- Voltage for all applications is 600 volts.
- TWN75- Wet locations not to exceed 75° C
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- VW-1
- FT1
- MTW
Brand | Southwire |
---|---|
Date Added | Nov 26, 2023 |
UPC | 094706476078 |
Store Location (Lititz, PA) | Aisle 06, Section D2 |
Package Length (in) | 0.25" |
Package Width (in) | 0.25" |
Package Height (in) | 12.00" |
Manufacturer Part Number | 20496601 |
Country of Origin | United States |
Length | 11.7500 |
Height | 11.7500 |
Width | 11.2500 |
Weight | 49.509 |
Color | Blue |
Warranty | 1 year manufacturers defect |
