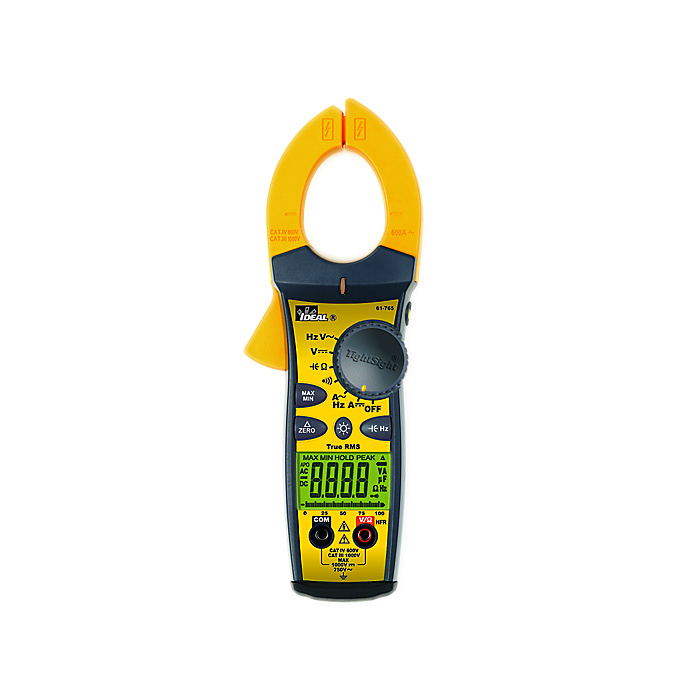

Problem: Have you ever had to measure the circuit current in a confined, dimly lit and hard to reach location?Solution: IDEAL TightSight™ Clamp Meter! This meter allows the user to safely and easily view current measurement with the exclusive second TightSight® display.
- TightSight™ bottom display
- Tapered jaws with hook tip
- True RMS current and voltage
- AC/DC voltage
- Audible continuity
- High frequency rejection*
- Peak hold
- Max/min hold
- Data hold
- Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
- Selectable auto power off
- Backlit display
- Low battery indicator
- Reads accurately on noisy electrical circuits
- Patented TightSight™ display lets you easily take readings while keeping your head at a safe distance from the panel — no more need to twist the meter or risk pulling on an energized conductor
- Easy to read backlit display with large numbers and icons so you can always see the correct reading
- Electronic overload protection on all ranges
- Test leads supplied are compliant to IEC61010-031 compliant
- Read and record while clamped instead of holding the reading, unclamping, moving and recording
- Hook tip for easier wire separation and tapered jaws for reaching into tight spaces
- Help troubleshoot with min and max value readings over a period, i.e. nuisance tripping and power supply fluctuations
- True RMS provides accurate readings of non-sinusoidal load currents
- Broad current range from 0 to 1000 amps (61-770 series) covers multiple applications
- Large jaw diameter for cables up to 2" (51mm) in diameter (770 series only)
- Includes carrying case and test leads with alligator clips
- Full AC/DC capabilities: the Tightsight™ is equally adaptable for both AC and DC current measurement requirements – such as solar, public transportation, and battery backup applications
- Calibration services available
- 2-year warranty
Brand | Ideal Industries |
---|---|
UPC | 783250659470 |
Store Location (Lititz, PA) | Aisle 08, Section C5 |
Package Length (in) | 10.20" |
Package Width (in) | 5.40" |
Package Height (in) | 3.00" |
Manufacturer Part Number | 61-765 |
