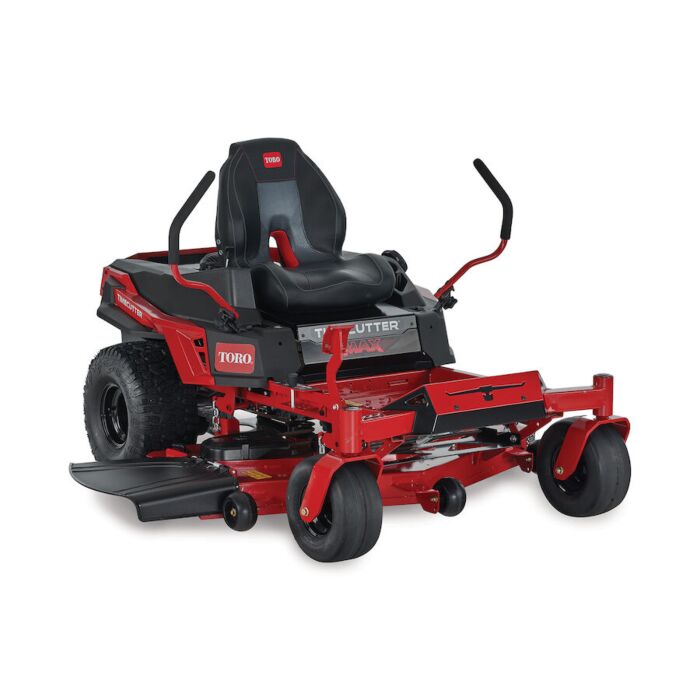

TimeCutter Max Zero Turn Mower - 54 in.
SKU: T77504
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$4,599.00
$4,199.00
Features
Specifications
Downloads
No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability, and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
- Heavy-duty steel IronForged® Deck doesn't flinch no matter what you throw its way
- Comfortable gaming-style seat gives you big time support
- The four-point deck hanging system doesn't flinch under your feet when you get on or off
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf
- Automotive-style fuel fill means less mess as you top off the 5 gallon tank
- Spray-blocking fenders keep tire spray off you & your engine
- The integrated drain hose makes oil changes effortless
- Over 100 years of Pro DNA course through the veins of every mower built
- Built upon an ultra-strong, fully tubular steel frame
- The same drop pin height of cut used by the pros allows you to easily adjust to the perfect height
- The extra-large, built-in drink holder keeps your beverage handy
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
| Brand | Toro |
|---|---|
| Date Added | Dec 29, 2025 |
| UPC | 021038775043 |
| Store Location (Lititz, PA) | Aisle 14, Section PP |
| Manufacturer Part Number | 77504 |
| Air Filter | Standard Kawasaki Air Cleaner |
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 17,700 ft/min / 5,395 m/min |
| Box Dimensions | 82.0" x 57.0" x 35.0" / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3" x 1.5" x 0.120" (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 12" x 6" - 5" (30.5 x 12.2 cm - 12.7 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1" (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IronForged® |
| Deck Size | 54" / 137 cm |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20" x 10" - 8 in (51 cm x 26 cm - 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3" x 1.5" (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal / 18.9 L / 20 qt |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 - 5.0" / 2.5 - 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 19" Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12" x 6" (30.5 cm x 15.2cm) Front, 20" x11" (50.8 cm x 27.9 cm) Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 653 lbs / 296.2 kg |
