Features
Specifications

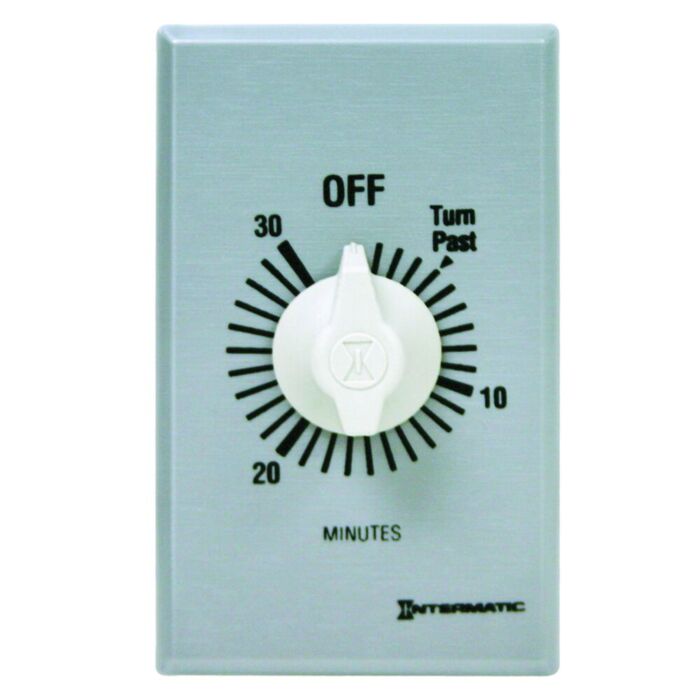

The SW Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Brushed metal look switch plate meets NEC requirements (plate is included)
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
- Perfect for use with bathroom fans, spas, storage closets, garage lights and more
Brand | Intermatic |
---|---|
UPC | 078275143524 |
Store Location (Lititz, PA) | Aisle 05, Section D3 |
Package Length (in) | 4.40" |
Package Width (in) | 2.00" |
Package Height (in) | 3.00" |
Manufacturer Part Number | SW30MK |
Series | SW |
Voltage Rating | 125-277 VAC |
Current Rating | 20 A |
Frequency Rating | 50-60 Hz |
Power Rating | 875 W |
HP Rating | 2 hp |
Contact Configuration | SPST |
Timing Range | 30 min |
Coil Voltage | 125 VAC |
Mounting Type | In-Wall |
Temperature Rating | 40-120 deg F |
Material | Plastic |
Finish | Brushed Metal |
Color | Gray |
Height | 104.8 mm |
Width | 44.5 mm |
Depth | 31.8 mm |
