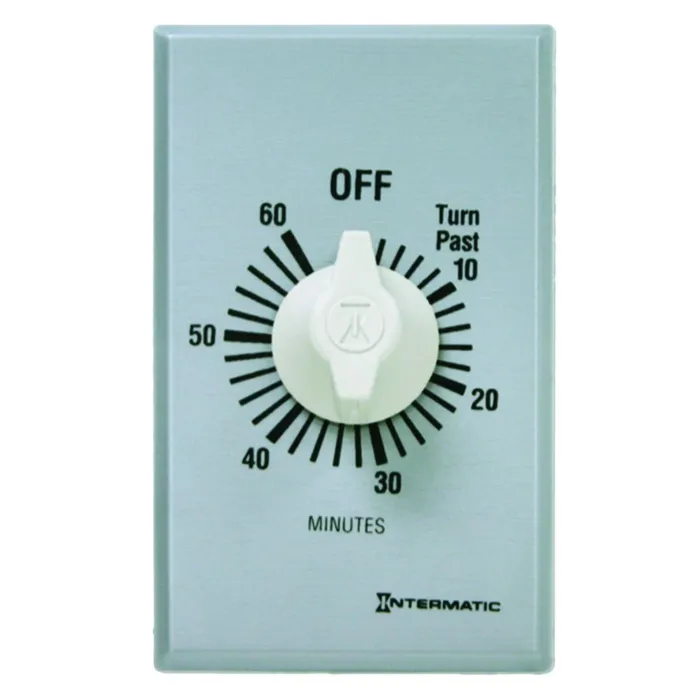

The SW60MK is a single pole, single throw energy saving timer that uses no electricity to operate. Designed to replace any standard wall switch, single or multi-gang and automatically limit the ON time of fans, lights, motors, heaters and other energy consuming loads. Has a time limit of 60 minutes. This unit is supplied with a molded gray wall plate. An exclusive up front terminal connection with teeter type terminals and an easy press-on knob design ensure quick and easy installation.
- 60-Minute timer
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Brushed metal look switch plate meets NEC requirements
- Incandescent/fluorescent/CFL/LED compatible
Brand | Intermatic |
---|---|
UPC | 078275143531 |
Store Location (Lititz, PA) | Aisle 05, Section D3 |
Package Length (in) | 6.60" |
Package Width (in) | 4.60" |
Package Height (in) | 1.60" |
Manufacturer Part Number | SW60MK |
Series | SW |
Voltage Rating | 125-277 VAC |
Current Rating | 20 A |
Frequency Rating | 50-60 Hz |
Power Rating | 875 W |
HP Rating | 2 hp |
Contact Configuration | SPST |
Timing Range | 60 min |
Coil Voltage | 125 VAC |
Mounting Type | In-Wall |
Temperature Rating | 40-120 deg F |
Material | Plastic |
Color | Silver |
Height | 104.8 mm |
Width | 44.5 mm |
Depth | 31.8 mm |
