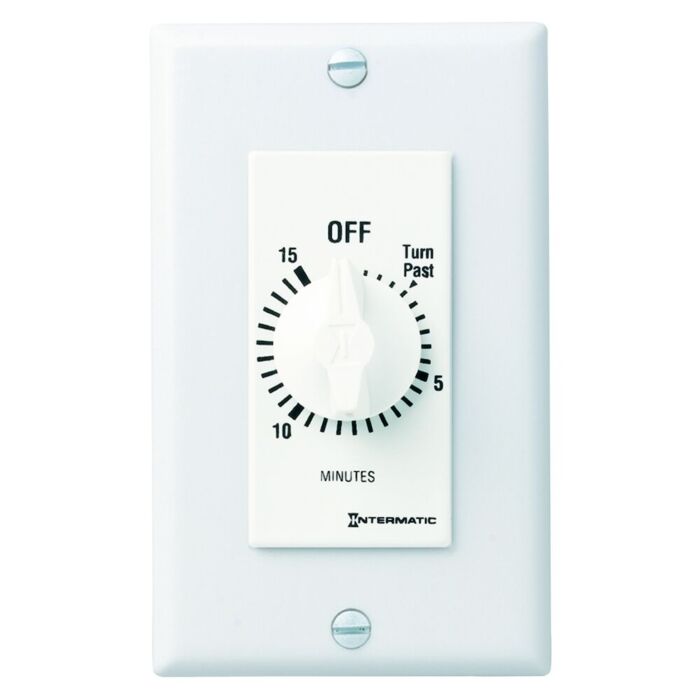

125-277 VAC 10 A 50-60 Hz Spring Wound Countdown Timer Switch
SKU: SW15MWK
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$27.99
Features
Specifications
The SW Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads.
- 15-Minute timer
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
| Brand | Intermatic |
|---|---|
| UPC | 078275143470 |
| Store Location (Lititz, PA) | Aisle 05, Section D4 |
| Package Length (in) | 4.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | SW15MWK |
| Series | SW |
| Voltage Rating | 125-277 VAC |
| Current Rating | 10 A |
| Frequency Rating | 50-60 Hz |
| Power Rating | 875 W |
| HP Rating | 2 hp |
| Contact Configuration | SPDT |
| Coil Voltage | 125 VAC |
| Mounting Type | In-Wall |
| Temperature Rating | 40-120 deg F |
| Material | Plastic |
| Color | White |
