Timken

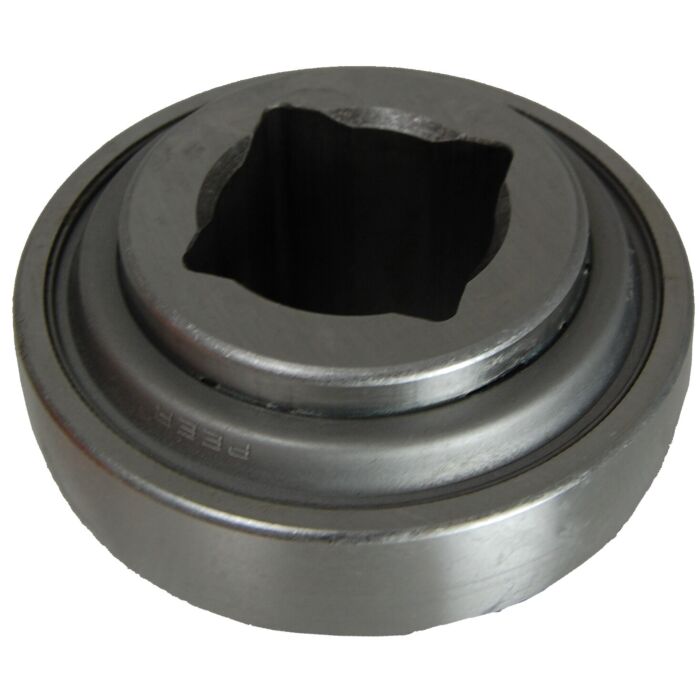

1-1/8 in 80 mm 0.709 in Flat Disc Harrow Bearing
SKU: W208PP5TK | Location: Aisle 08, Section X3
$41.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Bearings with Tri-Ply Seals are designed for service involving severe contamination, such as disk harrows, disk tillers and other seed preparation equipment and certain conveyor applications. Tri-Ply sealed units come in two designs – one consisting of three Timken rubber seals separated by steel spacers and retained by steel caps in the outer ring and the other, a highly effective one-piece, molded seal design. Both designs have an exterior shroud cap to protect the seals and reinforce the exceptional sealing action of the complete unit. A patented notched seal groove design, provided on selected sizes, is one of the most positive seal retention methods ever developed.
- Designed for environments where severe contamination is present, such as agricultural tillage equipment
- Use of Tri-Ply Seal bearings simplifes housing designs and their extra inner ring width provides greater support on the shaft
Brand | Timken |
---|---|
UPC | 087796041257 |
Store Location (Lititz, PA) | Aisle 08, Section X3 |
Package Length (in) | 3.00" |
Package Width (in) | 3.00" |
Package Height (in) | 1.80" |
Manufacturer Part Number | 308-W208PP5 |
Type | Flat |
Bore Diameter | 1-1/8 in |
Outside Diameter | 80 mm |
Width | 0.709 in |
Bearing Material | Steel |
Seal Material | Rubber |
