Timken

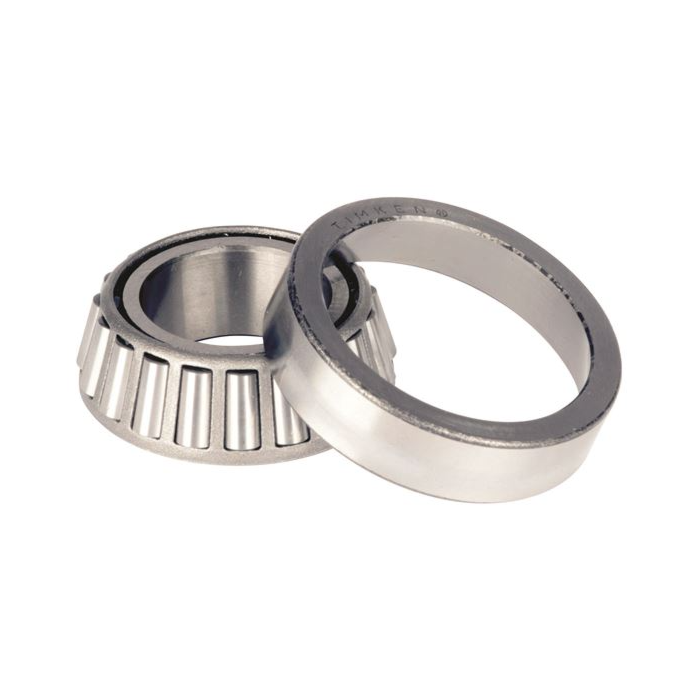

Stamped Steel Single Cone Taper Roller Bearing - 1-1/4 in.
SKU: LM67049ATK
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.99
Features
Specifications
This Taper Roller Bearing is a single cone, straight bore design with a 1-1/4 inch bore diameter and 0.66 inch width. It features a stamped steel cage and has high load capacity ratings of 10,500 lb dynamic and 10,000 lb static.
| Brand | Timken |
|---|---|
| UPC | 053893362434 |
| Store Location (Lititz, PA) | Aisle 08, Section X2 |
| Package Length (in) | 2.40" |
| Package Width (in) | 2.20" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | TIM-LM67049A-2 |
| Type | Single Cone, Straight Bore |
| Bore Diameter | 1-1/4" |
| Width | 0.66" |
| Load Capacity | 10500 lb Dynamic, 10000 lb Static |
| Cage Material | Stamped Steel |
| Series | LM67000 |
| d - Bore | 1-1/4" |
| D - Cup Outer Diameter | 2.3280" |
| B - Cone Width | 0.6600" |
| C - Cup Width | 0.4650" |
| T - Bearing Width | 0.6250" |
| R - Cone Backface "To Clear" Radius1 | 0.03" |
| r - Cup Backface "To Clear" Radius2 | 0.050" |
| da - Cone Frontface Backing Diameter | 1.42" |
| db - Cone Backface Backing Diameter | 1.46" |
| Da - Cup Frontface Backing Diameter | 2.24" |
| Db - Cup Backface Backing Diameter | 2.05" |
| Ab - Cage-Cone Frontface Clearance | 0.05" |
| Aa - Cage-Cone Backface Clearance | 0.01" |
| a - Effective Center Location3 | -0.12" |
