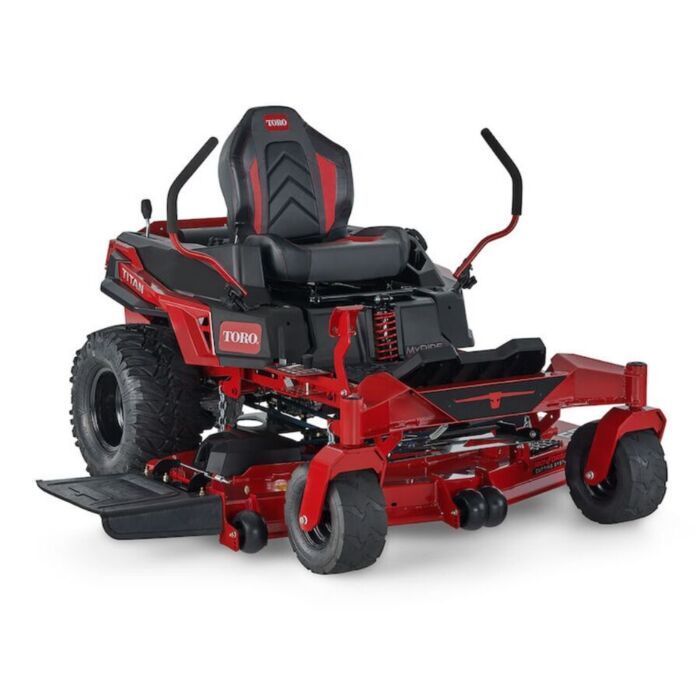

This mower is built to devour any acreage you throw its way. Commercial power meets insane comfort with the Toro TITAN, and it's built with over a century of pro-level engineering that’s been perfected for you. Every detail is designed for utter dominance and ultimate comfort, including its heavy-duty IronForged deck, fully floating MyRIDE® Suspension, commercial drop pin, tougher-than-nails bullnose leading edge, superpowered engine, and maximum traction rear tires.
- I-beam front end for extreme durability and strength
- Heavy-duty steel IronForged® Deck doesn't flinch no matter what you throw its way
- 22" rear tires feature aggressive treads
- MyRIDE Suspension System absorbs the bumps for added comfortability
- Treaded front casters
- Comfortable gaming-style seat gives you big time support
- The rubber discharge chute flexes without busting up your landscaping
- A cast aluminum stomp pad helps you scrape your boots & get good grip
- The same drop pin height of cut used by the pros
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
| Brand | Toro |
|---|---|
| Date Added | Dec 29, 2025 |
| UPC | 021038766140 |
| Manufacturer Part Number | 76614 |
| Air Filter | Kohler Pro Cleaner Air Filter |
| Anti Scalp Wheels | 4 Standard |
| Armrests | Optional |
| Blade Design | 0.164" / 0.417 cm Steel with Blade Stiffner |
| Blade Tip Speed | 18,908 ft/min / 5,763 m/min |
| Box Dimensions | 90.0" x 70.0" x 52.0" / 228.6 cm x 177.8 cm x 132.0 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3" x 1.5" x 0.120" (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13" x 6.5" - 6" (33 x 16.5 cm - 15.2 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® Suspension System |
| Cooling System | Air Cooled |
| Crankshaft | 1" (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Deck Design | 10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper |
| Deck Material | 10 Gauge Steel |
| Deck Size | 60" / 152 cm |
| Discharge Chute | Rubber |
| Drive System | Hydrostatic |
| Drive Tires | 22" x 11" (55.8 cm x 27.9 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | Kohler KT745 26HP 747cc |
| Engine Brand | Kohler |
| Engine Displacement | 747 cc |
| Engine Horsepower | 26.0 hp |
| Engine Power | 19.3 kW |
| Foot Operated Height of Cut | Standard |
| Forward Mowing Speed | Up to 8.5 mph / 13.6 kph |
| Frame | 3" x 1.5" (7.6 cm x 3.8 cm) Steel Tubing |
| Front Bumper | Reinforced Bull-Nose |
| Fuel Capacity | 5 gal / 18.9 L / 20 qt |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0" / 3.8 - 12.7 cm |
| Hitch Bracket | Standard |
| Number of Blades | 3 |
| Product Features | MyRIDE Suspension System |
| Product Type | TITAN MyRide |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 20" Gaming Style |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13" x 6.5" (33 x 16.5 cm) Front, 22" x 11" (55.8 cm x 27.9 cm) Rear |
| Transmission | Dual hydrostatic HG ZT2800 |
| Weight | 799 lbs / 362.4 kg |
