DC

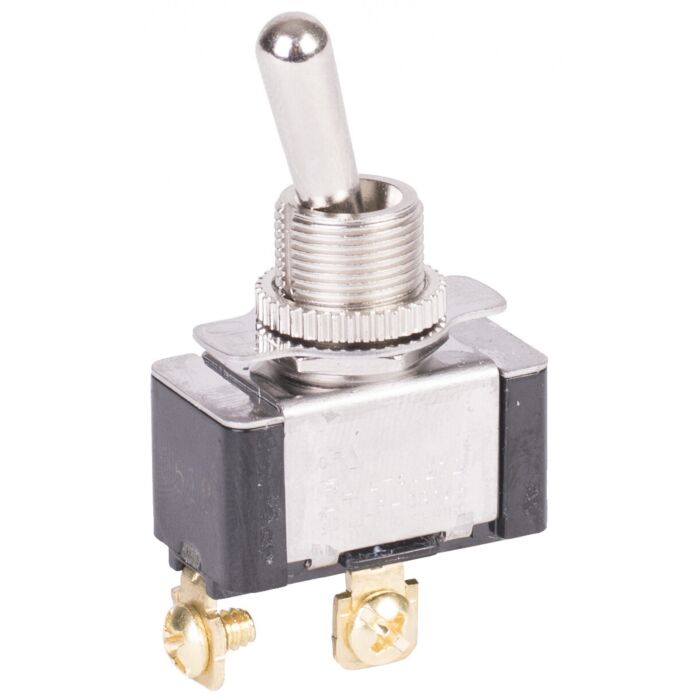

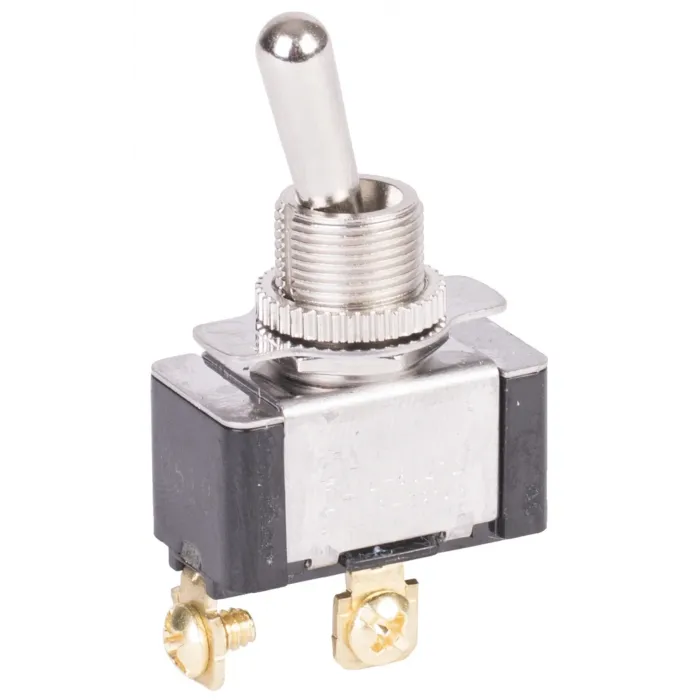

125-250 V 3/4 hp SPST Toggle Switch
SKU: DC73274 | Location: Aisle 08, Section D5
$7.79
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
52 In stock
Features
Specifications
These heavy-duty O-ring toggle switches feature screw terminals and are available in four different actuations; SPST, SPDT, DPST and DPDT. The O-ring completely protects the switch by deterring moisture and dust from causing internal damage. Each screw terminal O-ring toggle switch meets the standard of today's automotive, marine and industrial applications. The toggle switches are created with brass terminals, steel with zinc chromate frame and support and brass/bright nickel external parts. The switch features a black phenolic plastic case with a flammability rating of UL 94 flame class 94V-1.
- Typical applications industrial controls, marine panels, trucks, buses and automotive
- Neoprene seal signifies complete protection against harsh environments
- Moisture and dust resistant
| Brand | DC |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section D5 |
| Package Length (in) | 2.25" |
| Package Width (in) | 1.38" |
| Package Height (in) | 0.63" |
| Manufacturer Part Number | 73274DL |
| Voltage Rating | 125-250 V |
| Power Rating | 3/4 hp |
| Contact Configuration | SPST |
| Actuator Type | On-Off |
| Mounting Type | Stem 500 in Dia |
| Actuator Material | Metal |
