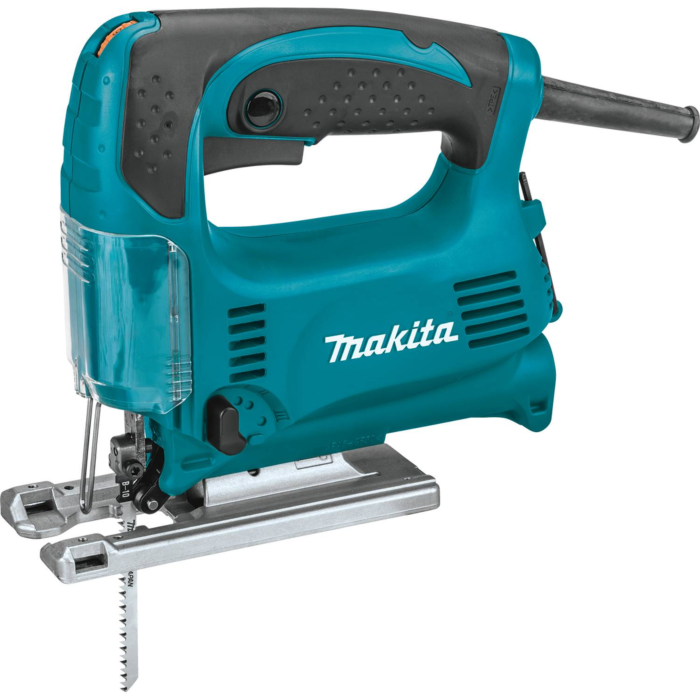

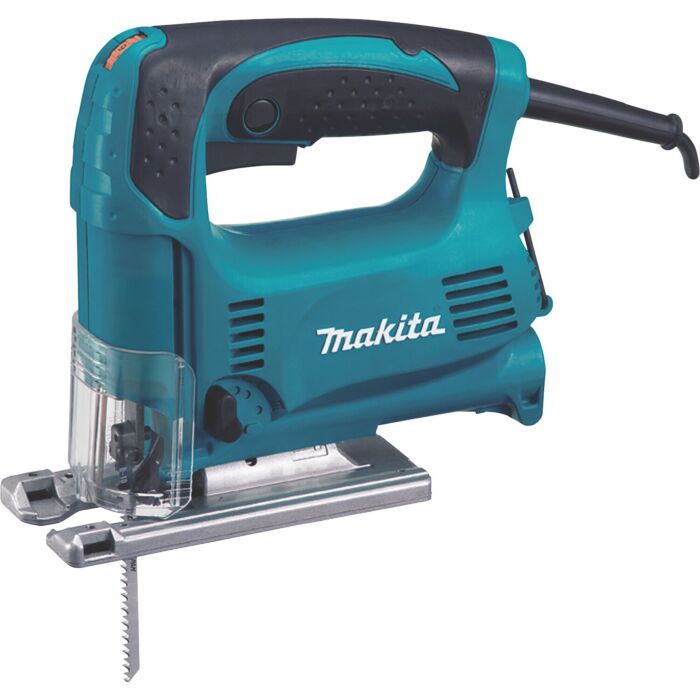

The Makita Top Handle Jig Saw (model 4329K) combines power with a compact design and ease-of-use features for a range of cutting applications. The 4329K has three orbital settings plus straight cutting, and features an ergonomically designed rubberized grip to provide more comfort and control. A through-the-body dust port provides optimal dust management with use of clear dust cover and vacuum. The counterweight balancing system is engineered for reduced vibration and improved comfort. The saw also features a large trigger switch for easy operation and lock-on button for extended use.
- Die-cast aluminum base adjusts up to 45° right or left and positive stop at 90° for solid cutting performance
- Die-cast aluminum base adjusts up to 45º right or left and positive stop at 90º for solid cutting performance
- Hex Wrench (783201-2)
- Counterweight balancing system for reduced vibration
- 3 orbital settings plus straight cutting with a powerful 3.9 AMP motor for use in a variety of materials
- PERFORMANCE - Variable speed (500-3,100 SPM) for controlled cutting
- Uses Tang shank blades
- Through-the-body dust port provides optimal dust management with use of clear dust cover and vacuum
- Large trigger switch for easy operation
- Variable speed control dial (500 - 3,100 SPM) enables user to set the speed to the application
- 4-1/8" 9TPI Jig Saw Blade (792529-7-1)
- Tool Case (824572-9)
- DURABILITY - Die-cast Aluminum base adjusts up to 45° right or left
- Onboard hex wrench for fast and easy blade changes and bevel adjustments
- INCLUDES - 1 ea. Blade, wrench and tool case
- Ergonomically designed rubberized grip for increased comfort and control
- Ergonomically designed rubberized grip for more comfort
- Lock-on button for extended operation
- VERSATILITY - 3 Orbital settings plus straight cutting for cutting in all variety of materials
- Variable speed control dial (500-3,100 SPM) enables user to match the speed to the application for optimal cutting performance in a variety of materials
- POWER - 3.9 AMP motor for powerful performance
- Sliding dust cover for use during vertical cutting helps prevent chips from flying
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381083300 |
| Store Location (Lititz, PA) | Aisle 25, Section N6 |
| Package Length (in) | 2.60" |
| Package Width (in) | 8.20" |
| Package Height (in) | 8.20" |
| Manufacturer Part Number | 4329K |
| Country of Origin | China |
| Length of Stroke | 11/16" |
| Max. Cutting Capacity at 90° (wood) | 2-9/16" |
| Overall Length | 8-7/8" |
| Strokes Per Minute (variable speed) | 500 - 3,100 SPM |
| Max. Cutting Capacity at 90° (steel) | 1/4" |
| Blade Shank | "T" Tang |
| Net Weight | 4.2 lbs. |
| AMPS | 3.9 |
| Variable speed dial | Yes |
| Shipping Weight | 7.7 lbs. |
| Power Type | Corded |
| UPC Code | 088381-083300 |
| Orbital settings | Yes |
| Tool-less blade change | No |
