Bosch

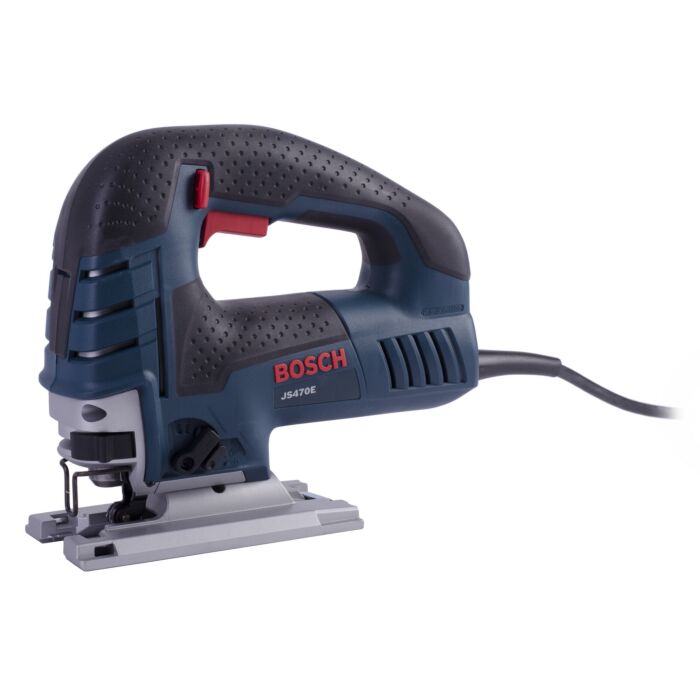

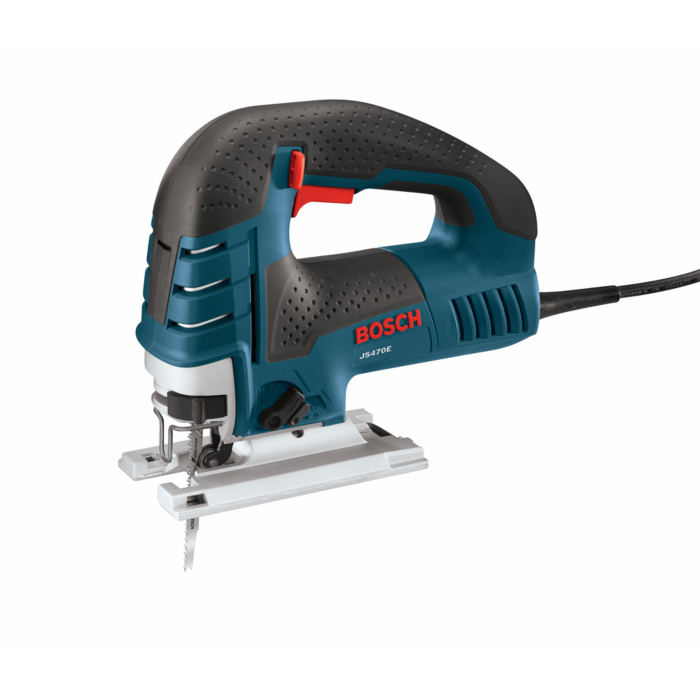

Top-Handle Jig Saw

SKU: JS470E | Location: Aisle 27, Section N4
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 3 In stock

Features
The Bosch JS470E Top-Handle Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. A dial on the back of the tool controls the maximum speed and the accelerator trigger controls the operating speed. Built with an aluminum gearbox and an insulated cover, this jig saw comes with a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate. The JS470E's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
  • Powerful jig saw – with 7.0 amp rating
  • Large die-cast aluminum footplate – with steel insert and on-board storage of bevel hex key
  • Variable-speed control – includes a dial for max speed and accelerator trigger to control operating speed
  • Constant Response circuitry – for consistent performance under load
  • Multi-directional blade clamp – supplies superior grip of T-shank blades (does not accept U-shank blades)
  • Aluminum gearbox with insulated cover – offers durability
  • Toolless blade-change system – furnishes fast blade insertion and a blade-ejection lever; no need to touch hot blades
  • Four orbital-action settings – provide varied blade strokes for smooth to aggressive cuts
  • Internal precision control – supplies a precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
  • Dust blower with on/off switch – for keeping the cut line visible and free of dust
  • Ergonomic top handle with soft-grip areas – supplies a solid, comfortable grip
  • Ambidextrous lock-on button – for steady long cuts and user comfort and control
  • Bosch JA1007
  • Bosch JA1010
  • Bosch JA1010
Specifications
Brand Bosch
UPC 000346398359
Store Location (Lititz, PA) Aisle 27, Section N4
Package Length (in) 15.40"
Package Width (in) 4.80"
Package Height (in) 14.60"
Manufacturer Part Number JS470E
Adjustable Shoe Yes
Amperage (A) 7
Bevel Adjustment Wrench Included Yes - Stored on Tool
Blade Type Accepts only T-shank jig saw blades Jig Saw T-Shank
Blade Wrench Included Not Required
Blades Included 1
CSA Certified Yes
Case Included Yes
Case Type Hard plastic
Color / Finish Blue
Cord Length (ft) 10
Cordless / Corded Corded
Country of Origin Hungary
Cutting Capacity- Soft Wood 5-7/8"
Cutting Capacity-Aluminum 0.875
Cutting Capacity-Mild Steel 0.375
Dust Blower Yes
Dust Collection Yes
Dust Port Yes
ETL Listed No
Electrical Cord Configuration 14 Gauge
Electronic Speed Control Yes
External Motor Brush Access No
GTIN 00000346398359
Height (in) 8.43
Hertz 60
Housing Material High Density Plastic
Integrated Blade Storage No
Integrated Laser Guide No
Integrated Work Light Not Featured
Jig Saw Adjustable Shoe Yes
Jig Saw Bevel Adjustment Wrench Included Yes - Stored on Tool
Jig Saw Blade Type Jig Saw T-Shank
Jig Saw Blade Wrench Included Not Required
Jig Saw Blades Included 1
Jig Saw Color / Finish Blue
Jig Saw Dust Blower Yes
Jig Saw Electronic Speed Control Yes
Jig Saw External Motor Brush Access No
Jig Saw Height (in) 7
Jig Saw Housing Material High Density Plastic
Jig Saw Integrated Blade Storage No
Jig Saw Integrated Laser Guide No
Jig Saw Integrated Work Light No
Jig Saw Length (in) 14
Jig Saw Lock-on Switch Yes
Jig Saw Main Handle Type Top Handle
Jig Saw Maximum Metal Cutting Capacity (in) 0.875
Jig Saw Maximum Strokes per Minute - No Load 3100
Jig Saw Maximum Wood Cutting Capacity (in) 5.875
Jig Saw Minimum Strokes per Minute - No Load 500
Jig Saw Orbital Action Yes
Jig Saw Orbital Action Settings 4
Jig Saw Quick Change Blade System Yes
Jig Saw Scrolling Action No
Jig Saw Shoe Cover Included Yes
Jig Saw Shoe Material Die-Cast Aluminum with Steel Insert
Jig Saw Stroke Length (in) 1
Jig Saw Tool-Less Bevel Adjustment No
Jig Saw Tool-Less Blade Changing Yes
Jig Saw Variable Speed Yes
Jig Saw Width (in) 4
Keyless / Keyed Blade Change Keyless
Length (in) 14
Lock-on Switch Yes
Main Handle Type Top Handle
Max. Bevel Cut 45°
Maximum Metal Cutting Capacity (in) 0.875
Maximum Strokes per Minute - No Load 3100
Maximum Wood Cutting Capacity (in) 5.875
Minimum Strokes per Minute - No Load 500
Net Tool Weight (lbs) 5.6
Number of Orbital Action Settings 4
Orbital Action Yes
Powered Tool Power Source Electric - Corded
Quick Change Blade System Yes
Rating 120V
Saw Design Top / D-Handle
Scrolling Action No
Shoe Cover Included Yes
Shoe Material Die-Cast Aluminum with Steel Insert
Stroke Length (in) 1
Tool Storage Case
Tool-Less Bevel Adjustment No
Tool-Less Blade Changing Yes
UL Listed Yes
Variable Speed Yes
Voltage 120
Voltage (V) 120
Weight 5.6 lb
Weight (lbs) 5.6 lb
Width (in) 4
