The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. The line includes micrometer, tire shop, beam, and electronic torque wrenches and torque multipliers. The micrometer wrenches come available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drive sizes. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended specifically for checking wheel lug nuts and are available in 3/8" and 1/2" drive sizes. The electronic torque wrenches ensure a precise fastener torque level and are available in either 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow you to complete any job where accurate torque is required.
- WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
- How should the wrench be stored to maintain its accuracy? It’s important to store the torque wrench at its lowest setting (but not below its minimum) and in a dry, protected environment to prevent damage and ensure long-term accuracy.
- How does the wrench handle adjustment work? The handle of the micrometer torque wrench features a twist mechanism for adjusting torque settings. Once the desired torque is set, the locking feature secures it to prevent any accidental changes during use.
- What kind of tasks is a 1/2" drive torque wrench typically used for? A 1/2" drive torque wrench is ideal for heavy-duty applications, such as tightening larger fasteners on vehicles, suspension components, and industrial equipment, where higher torque is necessary.
- My GEARWRENCH torque wrench is out of warranty, how can I get it repaired? Our torque products are covered under a 1 year warranty with 90 day calibration guarantee. If your GEARWRENCH torque product is outside of this window and needs to be repaired, please check out our warranty page for our authorized repair centers in the US and Canada.
- Torque accuracy of +/- 3% clockwise in the upper 80% range of maximum torque
- Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application
- Pull down torque adjustment collar feature allows you to make quick and easy torque setting changes
- Scale markings are highly visible and easy to read
- Midpoint on the handle clearly marked for accuracy
- Knurled anodized aluminum handle lets you grip the wrench comfortably, helping to reduce hand fatigue
- Meets or exceeds ASME B107.300 standards and specifications
| Brand | GearWrench |
|---|---|
| UPC | 099575005633 |
| Package Length (in) | 24.50" |
| Package Width (in) | 3.00" |
| Package Height (in) | 2.40" |
| Manufacturer Part Number | 85063M |
| Country of Origin | Mexico |
| Weight | 4.120 lbs |
| Type 1 | Micrometer |
| Foreign Trade Code | 8466100175 |
| Alt Scale Increments | 1.4 Nm |
| ASME Specification | B107.300 |
| Case Color | Black |
| Certified | No |
| Certified Model Number | 85063MCERT |
| Coupon Headline | Micrometer Torque Wrenches |
| Drive Tang Size | 1/2 in |
| Finish | Full Polish Chrome |
| Flexible | No |
| Head Length | 2.12 in |
| Head Thickness | 0.81 in |
| Head Thickness Less Tang | 0.27 in |
| Head Width | 1.75 in |
| Included Storage | Blow Mold Case |
| Knurled | Yes |

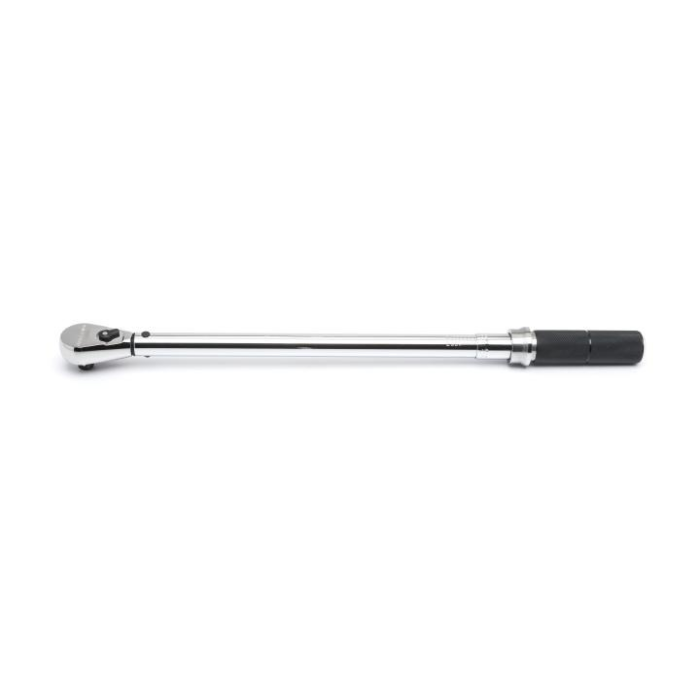

| Long Description | 1/2" Drive Micrometer Torque Wrench 20-150 ft/lbs. |
| Material | Alloy Steel |
| Maximum Torque (Alt Scale) | 210.2 Nm |
| Maximum Torque (Primary Scale) | 150 ft/lb |
| Minimum Torque (Alt Scale) | 33.9 Nm |
| Minimum Torque (Primary Scale) | 20 ft/lb |
| Overall Height | 1.75 in |
| Overall Length | 21.9 in |
| Overall Width | 1.75 in |
| Packaging | Boxed |
| Primary Scale Increments | 1 ft/lb |
| Set | No |
| Table Description | 1/2" Drive Micrometer Torque Wrench 20-150 ft/lbs |
| Tether Ready | No |
| Tooth Count | 32 |
| Torque Accuracy (20-100% of Full Range) | ± 3% Clockwise |
| Warranty | 90 Days Calibration/1 Year on Parts |
