REDARC

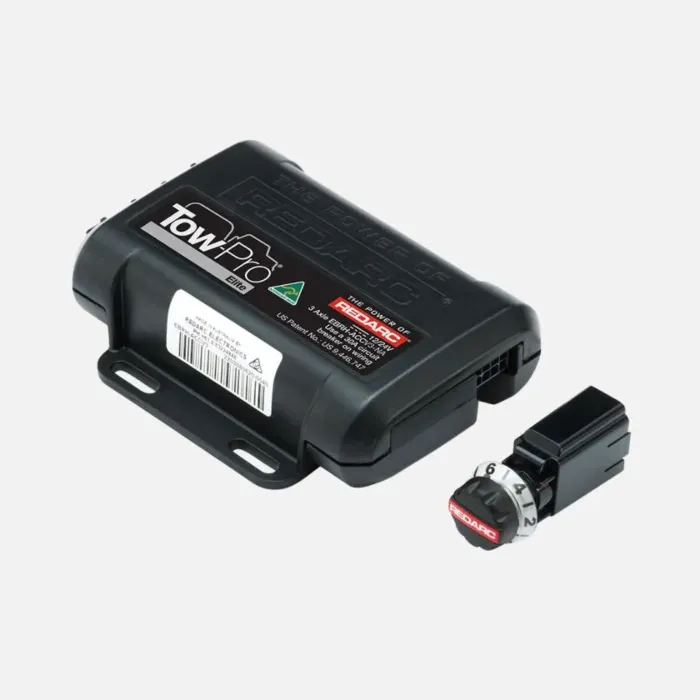

Tow-Pro Elite Electric Brake Controller
SKU: HE9244
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$349.99
Features
Specifications
Downloads
The award-winning REDARC Tow-Pro Elite is a versatile 12/24V electric brake controller that offers two distinct braking modes in a single dash-mounted unit. "Everyday Mode" uses proportional braking for smooth, synchronized stops during daily towing, while "Manual Off-Road Mode" gives the driver independent control over trailer speed for challenging terrains like mud, sand, or steep descents. Built with advanced three-axis accelerometer technology, the main unit can be mounted in any orientation while maintaining precise sensing and active calibration. This SEMA Global Media Award winner includes a low-profile, impact-safe control knob and comes standard with a universal pig-tail wiring harness and switch insert (TPSI-001). Rigorously tested in the harshest Australian conditions, the Tow-Pro Elite delivers reliable, all-weather performance for any towing application.
- Two braking modes
- SwayStop Control to stop trailer sway with one touch
- Factory look, dash-mounted remote head for ultimate control at your fingertips
- Main unit mounted behind the dash keeping the drivers leg space clear and no interference with airbags.
- Suitable for 12V and 24V vehicles
- Active calibration for easy setup
- Operates both electric and electric/hydraulic trailer brakes
| Brand | REDARC |
|---|---|
| Date Added | May 20, 2026 |
| Package Length (in) | 2.25" |
| Package Width (in) | 5.00" |
| Package Height (in) | 6.75" |
| Warranty | 2 Years |
| GTIN_barcode | 9338628006649 |
| Remote head meets UNECER21 and FMVSS 201 safety standards | Yes |
| Active Calibration | Yes |
| Proportional Mode (inertia sensing) for highway driving | Yes |
| User-Controlled Mode for off-road driving | Yes |
| Weight | 7 oz |
| operating voltage | 9 - 32V |
| Dash mounted remote head | Yes |
| Dexter & Tuson Sway Control System approved | Yes |
| Operates electric and electric/hydraulic brakes | Yes |
| Brake Input Signal Voltage | ON: +12V nominal OFF: 0V (12V vehicles) | ON: +24V nominal OFF: 0V (24V vehicles) |
| Suitable For 12V Systems | Yes |
| Suitable for 24 volt systems | Yes |
| Cable Length | 1 m (remote head cable) |
| Operating Temperature | -4°C to 140°C |
| 1-2 trailer axles | Yes |
| 1-3 trailer axles | Yes |
| Input Voltage | 12V | 24V |
| Max Power Current | 25A (12V vehicles) | 30A (24V vehicles) |
| Includes Universal Bare Cable Harness | Yes |
| Includes TPSI-001 Universal Switch Insert | Yes |
