REDARC

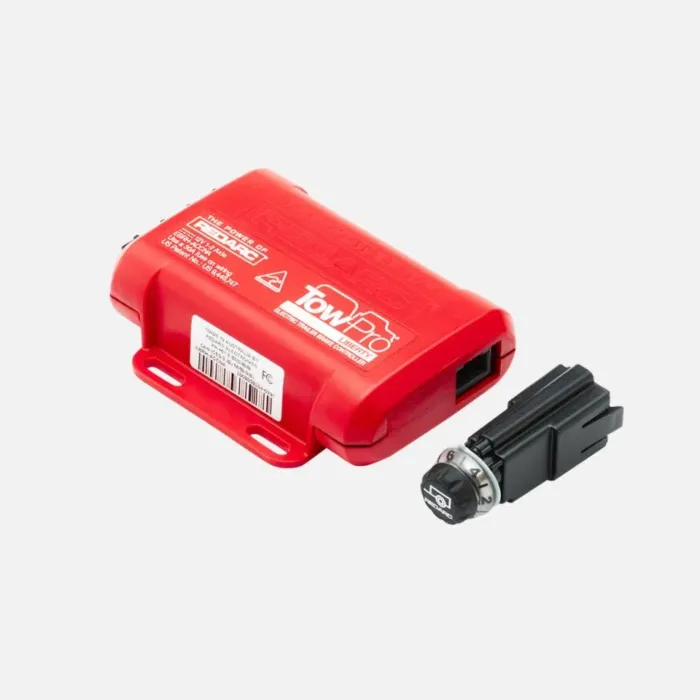

Tow-Pro Liberty Electric Brake Controller
SKU: HE9242
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$229.99
Features
Specifications
Downloads
The REDARC Tow-Pro Liberty is an innovative electric brake controller featuring advanced inertia-sensing technology, making it ideal for both daily hauling and highway driving. In "Everyday Mode," it utilizes proportional braking to match the vehicle’s braking force, ensuring a smooth application with no push or pull on the vehicle. This self-calibrating 12-volt system is easy to set up and is fully compatible with both electric and electric-over-hydraulic brakes. For a seamless installation, REDARC recommends using the TPH-025 universal pig-tail harness or one of their vehicle-specific wiring kits and switch inserts.
- Everyday Mode for smooth proportional braking
- SwayStop Control to stop trailer sway with one touch
- Factory look, dash mounted remote head for ultimate control at your fingertips
- Main unit mounted behind the dash keeping the drivers leg space clear and no interference with airbags
- Suitable for 12V vehicles
- Active calibration for easy setup
- Operates both electric and electric/hydraulic trailer brakes
| Brand | REDARC |
|---|---|
| Date Added | May 20, 2026 |
| Store Location (Lititz, PA) | Aisle 13 End Cap |
| Package Length (in) | 1.75" |
| Package Width (in) | 5.00" |
| Package Height (in) | 7.00" |
| Warranty | 2 Years |
| GTIN_barcode | 9338628006311 |
| Remote head meets UNECER21 and FMVSS 201 safety standards | Yes |
| Active Calibration | Yes |
| Proportional Mode (inertia sensing) for highway driving | Yes |
| User-Controlled Mode for off-road driving | No |
| Weight | 7 oz |
| Operating voltage | 9 - 16V |
| Dash-mounted remote head | Yes |
| Dexter & Tuson Sway Control System approved | Yes |
| Operates electric and electric/hydraulic brakes | Yes |
| Brake Input Signal Voltage | ON: +12V nominal OFF: 0V |
| Suitable For 12V Systems | Yes |
| Suitable for 24 volt systems | No |
| Cable Length | 1 m (remote head cable) |
| Operating Temperature | -4°C to 140°C |
| 1-2 trailer axles | Yes |
| 1-3 trailer axles | No |
| Input Voltage | 12V |
| Max Power Current | 18A |
| Includes Universal Bare Cable Harness | No |
| Includes TPSI-001 Universal Switch Insert | No |
