SKU: 1027920 | Location: Aisle 08, Section W5
$99.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications

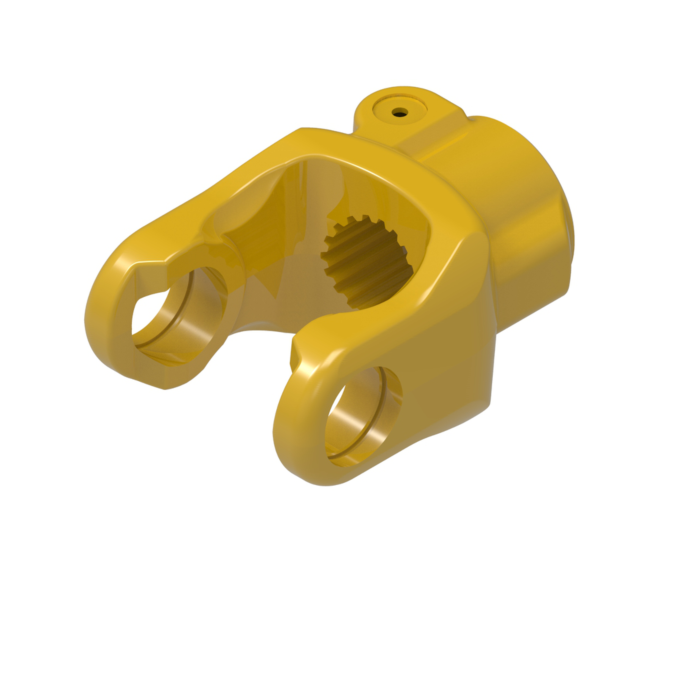

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
Brand | Weasler |
---|---|
UPC | 728357301433 |
Store Location (Lititz, PA) | Aisle 08, Section W5 |
Package Length (in) | 4.00" |
Package Width (in) | 3.20" |
Package Height (in) | 6.00" |
Manufacturer Part Number | 102-7920 |
Length | 4.764 inch |
Height | 4.72 inch |
Width | 2.95 inch |
Weight | 5.02 lb |
Series | AW36 |
Bore | 1.75" |
Bore Description | 1 3/4-20 SPLINE |
Connection 1 Description | QUICK DISCONNECT |
Bearing Diameter | 1.417" |
Bearing Span | 3.492" |
Horsepower at 540 RPM | 94 hp |
Horsepower at 1000 RPM | 144 hp |
