SKU: 1022621 | Location: Aisle 08, Section W4
$144.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications

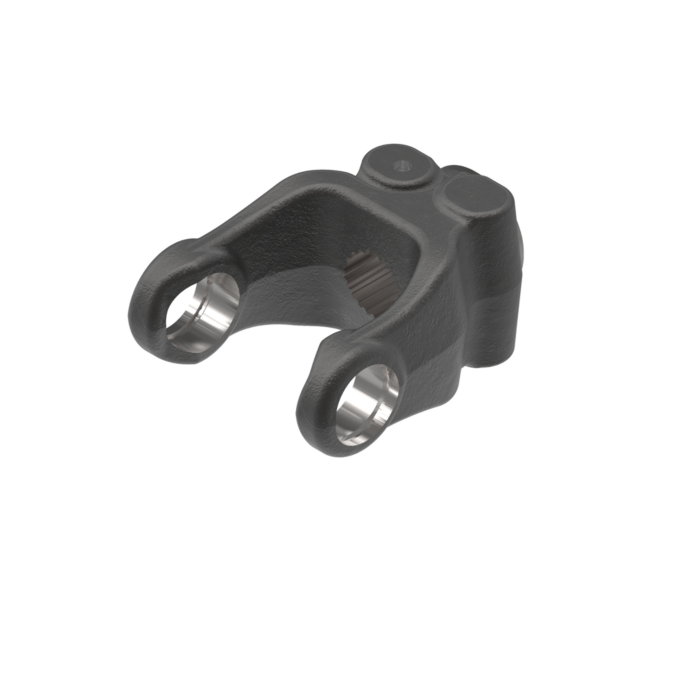

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
Brand | Weasler |
---|---|
UPC | 728357105314 |
Store Location (Lititz, PA) | Aisle 08, Section W4 |
Package Length (in) | 4.60" |
Package Width (in) | 3.00" |
Package Height (in) | 6.40" |
Manufacturer Part Number | 102-2621 |
Length | 5.31 inch |
Height | 5.125 inch |
Width | 2.63 inch |
Weight | 6.48 lb |
Series | 2600 |
Bore | 1.375" |
Bore Description | 1 3/8-21 SPLINE |
Connection 1 Description | QUICK DISCONNECT |
Bearing Diameter | 1.375" |
Bearing Span | 4.183" |
Horsepower at 540 RPM | 100 hp |
Horsepower at 1000 RPM | 154 hp |
