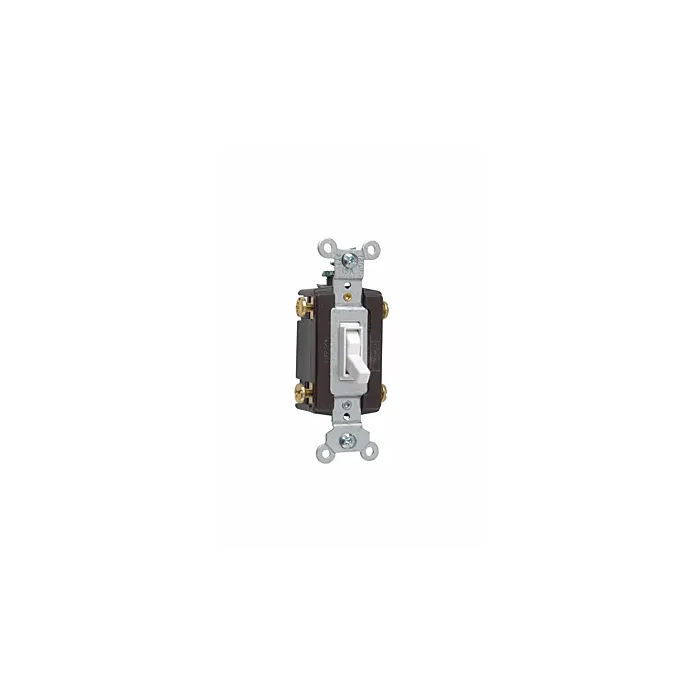

Trademaster® Grounding Toggle Switch, White
SKU: 664W
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.99
Features
Specifications
Downloads
Trademaster® Grounding Toggle Switch, White
- cULus Listed
- UL Listed
- CSA Listed
- Side wire #12 and #14 AWG. Push wire #14 AWG.
- Tri-drive ground, terminal, and mounting screws.
- Easy-access green hex head ground screw.
- For covering patents, see www.legrand.us/patents.
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007664027 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 2.19" |
| Package Width (in) | 1.81" |
| Package Height (in) | 1.81" |
| Manufacturer Part Number | 664WGCC12 |
| Depth | 1.09 in |
| Color | White |
| Height | 4.195 in |
| Finish | Satin |
| Width | 1.25 in |
| Country of Origin | Mexico |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Type | Switch |
| Load Type | Incandescent |
| Amperage | 15.0 A |
| Standard | UL 498 |
| Voltage | 120.0 V |
| Number of Gangs | 1 |
| Switch Type | Toggle |
| Indoor/Outdoor | Indoor |
| Number of Poles | 4-Way |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Requires Neutral Wire | No |
| Features | Extra Long Strap |
| Load Rating | 15 A @ 120 VAC |
| Connection Location | Side Only |
| Application Sector | Residential |
| Wire Connection Type | Push Wire |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | Side wire, high impact resistant construction, extra long strap |
