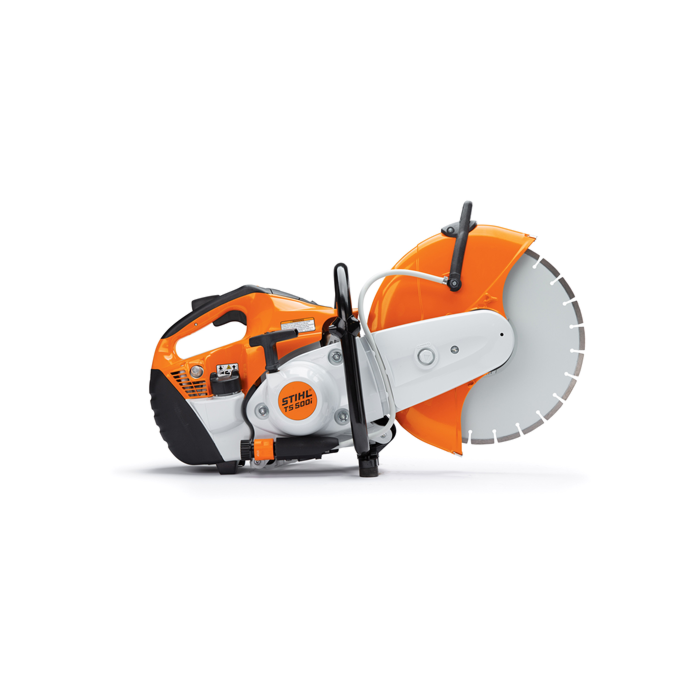

Abrasive cutting just got more cutting edge. STIHL introduces another industry first with the TS 500i STIHL Cutquik® cut-off machine – the first handheld outdoor power tool to offer an electronically controlled fuel-injection system. This system increases power and performance over 15% while remaining lightweight and well-balanced. The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime, and pull. Lightweight, powerful and fuel-injected, this 14” cut-off machine is designed for superior balance and handling during your toughest jobs. You'll be impressed with the amazing acceleration of this machine, getting you back to speed faster than you thought possible. The STIHL TS 500i also features a high-efficiency engine with low exhaust emissions and optimal torque throughout its rpm range. Its Electronic Water Control (EWC) allows for easy water flow adjustment while cutting and its X2 air filtration system maintains an incredible 99.96% cleaning efficiency. This machine has it all, so very little can stand in your way. NOTE: Abrasive wheel included. Diamond wheel (shown) sold separately.
- Anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience
- Bayonet-style filler cap for easy use
- Decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope
- Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle
- Fuel injection system makes starting easier and more reliable by eliminating the choke
- Ergonomic top-handle bar design provides an optimal comfortable grip in any working position
- Reduced emission engine technology
- ElastoStart™ starter handle has a built-in shock absorber that helps reduce the effort when pulling on the starter cord
- With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
- X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year
| Brand | STIHL |
|---|---|
| UPC | 795711830694 |
| Store Location (Lititz, PA) | Aisle 18, Section M2 |
| Manufacturer Part Number | 42500112811US |
| Maximum Cutting Depth | 4.9" |
| Maximum Spindle Speed | 5,350 rpm |
| Maximum Wheel Size | 14" |
| Engine Speed | 9,000 rpm |
| Engine Power | 5.2 bhp |
| Displacement | 72.2 cc |
| Power Source | Gas |
| Arbor Size | .787" |
| Weight | 22.5 lb |
| Fuel Capacity | 24.5 oz |
