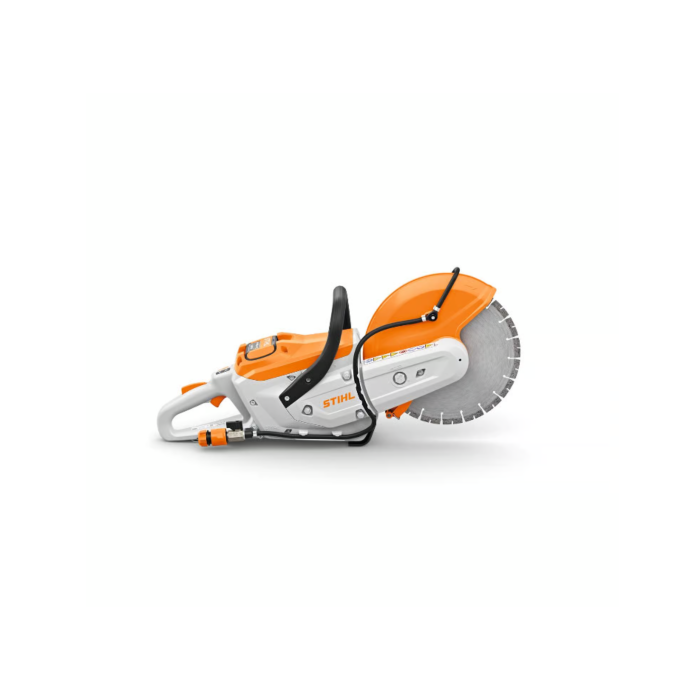

The TSA 300 STIHL Cutquik® is a lightweight and compact battery-powered cut-off machine designed to cut deeper than a 12" TS 410 gas-powered cut-off machine. Because it is battery-powered, the TSA 300 STIHL Cutquik® is a low-noise machine with no exhaust emissions and reduced maintenance. The TSA 300 STIHL Cutquik® is rated for wet cutting and features a quick connect hose adapter that automatically shuts off the water when the hose is disconnected. Features such as a variable-speed trigger for optimal control and a no-maintenance brushless motor make this machine even more user-friendly. The TSA 300 STIHL Cutquik® is also built to easily connect to the Smart connector 2 A, so users can take advantage of the STIHL connected platform.
- Magnetic filter protects machine from dust particles
- Designed to cut deeper than a 12” TS 410 gas-powered cut-off machine
- Lightweight design & ergonomic grip helps reduce operator fatigue
- Compact powerhead design
- Electronic coast down brake stops the cutting wheel in under four seconds
- Water resistant while wet-cutting
- Variable-speed trigger
- Brushless motor maximizes energy efficiency and requires virtually no maintenance
- The water connection is designed for the user to shut off the water when the unit is not in use
- Quick connect hose adapter is designed not to spray water on the user when the hose is disconnected
- Lightweight and durable magnesium guard to improve maneuverability
- Smart Connector gives users a new level of tool management from their connected device
- IPX4 rating
- Multi-function control handle makes it easier to complete tasks
- Consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings
| Brand | STIHL |
|---|---|
| UPC | 795711883911 |
| Store Location (Lititz, PA) | Aisle 16 End Cap |
| Manufacturer Part Number | TA020116601US |
| Type | Cordless |
| Size | 9" |
| Style | Cut-Off Saw |
| Includes | Bare Tool |
| Product_line | AP Series |
| Power Source | Battery |
| Weight | 13.7 lbs |
| Runtime (w/ AP 500 S) Up To | 20 min |
| Maximum Cutting Depth | 4.3" |
| Maximum Wheel Size | 12" |
| Arbor Size | 20 mm |
| Battery System | AP System |
| Maximum Spindle Speed | 5,350 rpm |
| Weight (w/ AP 500 S) | 18.1 lbs |
