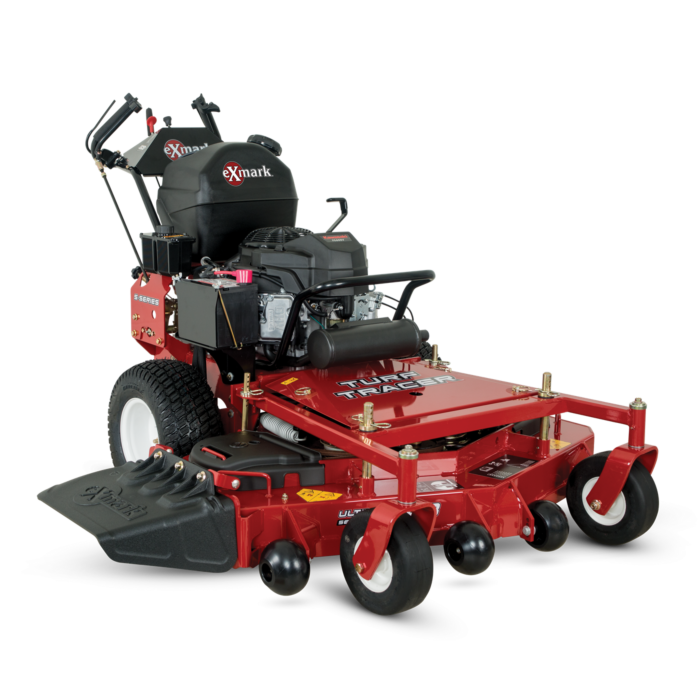

Turf Tracer S-series 52 in. Walk Behind Mower
SKU: TTS600GKA523E0
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$9,399.99
Features
Specifications
With the Exmark Turf Tracer S-Series commercial walk-behind mower, you can choose from a variety of rugged engines. You’ll get Exmark's patented Enhanced Control System (ECS) for ultimate operator comfort, which translates to day-long operator productivity.
- Superior electric clutch technology allows for easier and faster belt servicing
- Standard 9” x 3.5-4” smooth-tread, semi-pneumatic front caster tires virtually eliminate tire repair
- Improve maintenance records and track service intervals for longer life
- Enhanced control system preferred to all others on the market
- Full-floating UltraCut™ deck has standard side discharge, with molded discharge chute and the option to bag or mulch
| Brand | Exmark |
|---|---|
| UPC | 193308000114 |
| Manufacturer Part Number | TTS600GKA523E0 |
| Serialized | S |
| Fuel Capacity | 5-gallon (18.9-L) fuel tank. |
| Speed | Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse. |
| Cutting Height Range | 1.5" - 4.5" |
| Coverage in Acres | 1-3 |
| Acres Per Hour | 2.6 |
| Starter | Electric |
| Steering Control | Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn. |
| Front Caster Tires | 9 x 3.5-4, smooth-tread, semi-pneumatic. |
| Drive Tires | 16 x 7.5-8, 4-ply Turf Master® |
| Safety Package | Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine |
| Parking Brake | Lever-actuated mechanical compression. |
| Electrical | 12-volt battery with 15-amp alternator. |
| Standard Features | Engine hour meter |
| Engine Brand | Kawasaki |
| Transmission Speeds | Infinitely Variable |
| Transmission Brand | Hydro-Gear |
| Engine Model | FS600V |
| Engine Displacement | 603 |
| Engine Series | V-Twin |
| Fuel System | Carbureted |
| Transmission | Hydrostatic |
| Drive | Hydro-Drive |
| Engine Spec | AS26-R |
| Engine Speed | 3,600 RPM |
| Air Filter | Standard Engine Manufacturer's air filter |
| Drive Description | Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts. |
| Fuel Type | Gas Carbureted |
| PTO Engagement | Electromagnetic 105 ft-lbs clutch. |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | None |
| Deck Lift | Manual lift with hairpin from hole to hole for position adjustment. |
| Carb Compliant | No |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch. |
| Width / Cutting Deck | 52" |
| Deck Construction | 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength. |
| Cutting Heights | 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments. |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver. |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Blades | 3 Blades at 16.25" Length |
