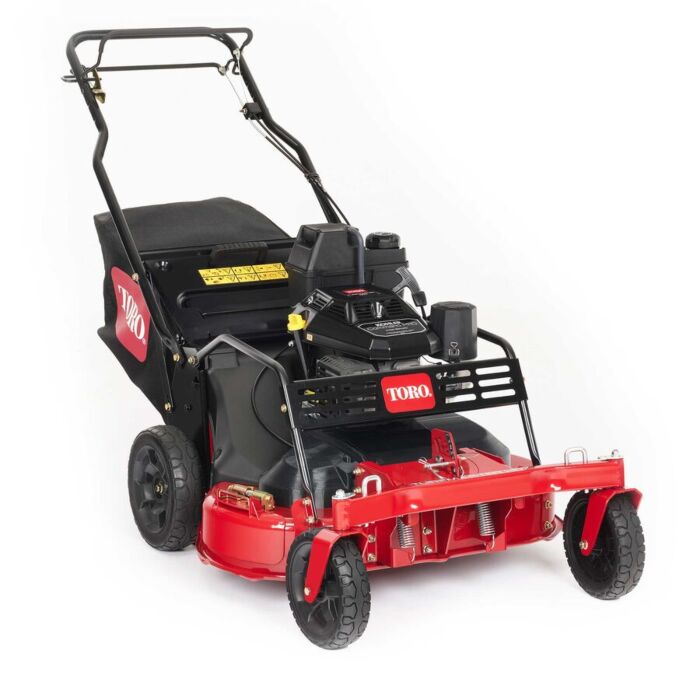

TurfMaster HDX Walk Behind Mower w/ Casters - 30 in.
SKU: T22236
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3,666.00
$3,299.00
Features
Specifications
The TurfMaster® HDX 30” with casters delivers the legendary power, durability, and cut that quality pros demand—now with even greater maneuverability. Its rugged 30” deck and Kohler CV224 Command Pro engine power through tough conditions, while the caster front end navigates tight spaces with ease and locks in for precision on open terrain. Built for all-day productivity, it features a two-point height of cut system for quick adjustments, a blade brake clutch for fast stops and restarts, and a large one-gallon gas tank for fewer refuels. The split-deck belt cover streamlines maintenance, providing quick access for cleaning and servicing to keep the mower running at peak efficiency. As the lightest 30” caster commercial-grade mower, it’s tough, agile, and ready to tackle any job.
- Locking capability to aid with holding straight lines
- Reduced refills with the 1-gallon gas tank
- Rubber tires with co-polymer wheels and ball bearings
- Horizon360® Business Management Software
| Brand | Toro |
|---|---|
| Date Added | Dec 29, 2025 |
| UPC | 021038222363 |
| Store Location (Lititz, PA) | Aisle 14, Section PP |
| Manufacturer Part Number | 22236 |
| Bagger Capacity | 2.5 bushels |
| Blade Design | 0.135" / 0.343 cm Thick Steel |
| Blade Engagement | Blade Brake Clutch (BBC) |
| Carb Compliant | Yes |
| Deck Material | 13 Gauge Steel Deck / Cast Aluminum Frame |
| Deck Size | 30 in / 76 cm |
| Engine | Kohler CV224 Command Pro 224 cc |
| Engine Displacement | 224 cc |
| Forward Mowing Speed | Up to 4 mph |
| Fuel Capacity | 1 gal / 3.8 L / 4 qt |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0" / 3.8 - 12.7 cm in 0.50 in (1.3 cm) increments |
| Mulch, Bag, Side Discharge | Bag standard, Mulch standard, Side discharge capable |
| Number of Blades | 2 |
| Product Type | Walk Behind Mowers |
| Product Use | Commercial |
| Spindle Housing | Die Cast Spindle, 17 mm Cold Formed Spindle Shafts |
| Start Type | Pull Cord |
| Front Tires | 9" x 2" (22.8 cm x 5.0 cm) Rubber Tire w/ Co-Polymer Caster Wheels |
| Rear Tires | 10.5" x 3" (26.6 cm x 7.6 cm) Rubber Tire w/ Co-Polymer Wheels |
| Transmission | Heavy Duty Self-Propelled |
| Weight | 195 lbs / 88.5 kg |
