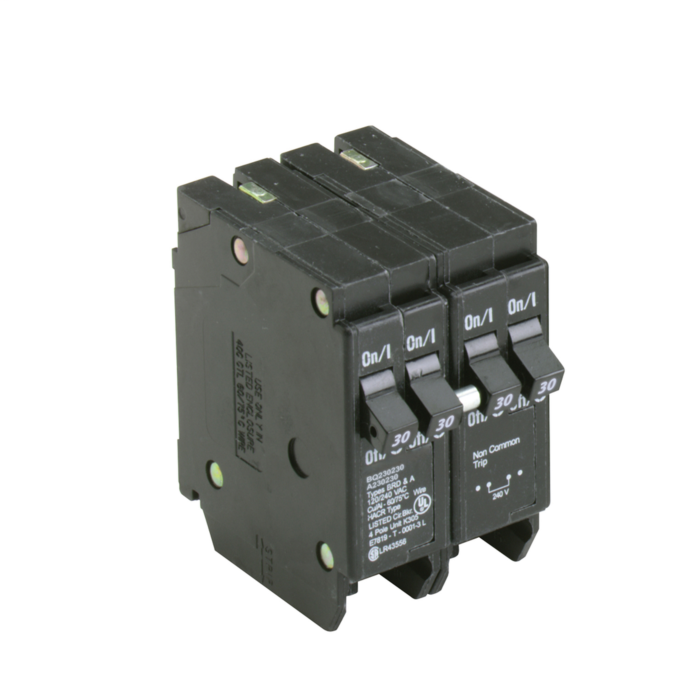

Type BQ 1-inch CTL Plug-on Breaker
SKU: BRQ230230
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$37.99
Features
Specifications
Downloads
Type BQ 1-inch CTL Plug-on Breaker
| Brand | Cutler-Hammer |
|---|---|
| UPC | 786676371001 |
| Store Location (Lititz, PA) | Aisle 08, Section D2 |
| Package Length (in) | 2.80" |
| Package Width (in) | 2.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | BQ230230 |
| Type | Type BQ Quadplex Independent Trip |
| Special Features | Includes Rejection Tab feature |
| Amperage Rating | (2) Two-Pole 30A |
| Interrupt Rating | 10 kAIC |
| Number Of Poles | Four-pole |
| Voltage Rating | 120/240V |
| Mounting | Plug-on |
| Main Circuit Breaker | BQ |
| Trip Type | Independent |
| Wire Size | #14-4 AWG Cu/Al |
| Quantity | Q28 |
| Used With | Type BR Loadcenters |
| Notes | All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated. |
